Features: • Fixed Output Voltage :VOUT1=3.3V/500mAVOUT2=1.8V/300mA• Low Dropout Voltage (defined as the minimum input/output voltage difference):Output 1 Dropout Voltage : 0.6V (at 500mA)Output 2 Dropout Voltage : 0.9V (at 300mA)• Stable with 4.7uF Output Capacitor(at VOUT1) Stab...
APL5523: Features: • Fixed Output Voltage :VOUT1=3.3V/500mAVOUT2=1.8V/300mA• Low Dropout Voltage (defined as the minimum input/output voltage difference):Output 1 Dropout Voltage : 0.6V (at 500mA...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Rating |
Unit |
VIN, VOUT |
Input Voltage or Out Voltage |
6 |
V |
RTH,JA |
Thermal Resistance Junction to Ambient SOP-8 SOP-8-P |
150 75 |
°C/W |
RTH,JC |
Thermal Resistance Junction to Case SOP-8 SOP-8-P |
30 5 |
°C/W |
PD |
Power Dissipation |
Internally Limited |
W |
TJ |
Operating Junction Temperature Control Section Power Transistor |
0 to 125 0 to 150 |
°C |
TSTG |
Storage Temperature Range |
-65 to +150 |
°C |
TL |
Lead Temperature (Soldering, 10 second) |
260 |
°C |

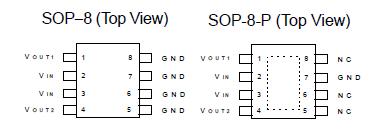

The APL5523 is a dual low dropout regulator with output1 with 3.3V/0.5A and output2 with 1.8V/0.3A output capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications, the APL5223 has been optimized. The dropout voltages are guaranteed at 0.6V at 0.5A for output1 and 0.9V at 0.3A for output 2. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The APL5523 regulator comes in a SOP-8 and SOP-8-P package.
