AP1604

Features:

- Input voltage range: 2.2V~5.5V (V_OUT type)
- Oscillator frequency: 600KHz (Typ.)
- Internal reference: 1.0V (Typ.)
- High efficiency: 93% (Typ .)
- Stand-by capability: I_STB=2µA. (Typ.)
- Soft-start time set-up externally type possible
- Current limit and thermal shutdown protection
- Pb-Free Package: SOT23-5, SON-6(3×3×0.8mm)


Application

Electronic Information Organizers
Palmtops
Cellular and portable phones
Portable Audio Systems
Various Multi-function Power Supplies

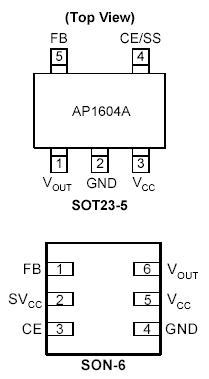

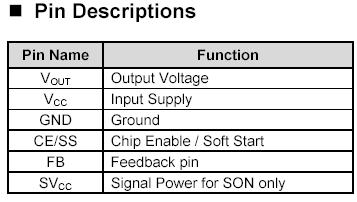

Pinout




Specifications

Symbol	Parameter	Ratings	Unit
VCC/SVCC	VIN Pin Voltage	-0.3 ~ 6.5	V
VOUT	VOUT Pin Voltage	-0.3 ~ VIN+0.3	V
VFB	FB Pin Voltage	-0.3 ~ VIN+0.3	V
VCE/SS	CE/SS Pin Voltage	-0.3 ~ VIN+0.3	V
Pd	Continuous Total Power Dissipation	Internal limited
Topr	Operating Ambient Temperature	-25 ~ +80
Tstg	Storage Temperature	-40 ~ +125

Description

The AP1604 series are multi-functional step-down DC/DC converters with built-in speed, low ON resistance drivers. It is capable to deliver more than 800mA output current with external coil, diode and capacitor.
Output voltage is set-up by the external resistors. (±2.5% accuracy). The 600KHz AP1604 that can work out with small value external components comes out more compact board.
The device switches to and works under PFM mode with light loads. It keeps at high efficiency for both light loads and large output current.
AP1604 can be soft-start with a proper capacitor connected between CE/SS pin and ground. The stand-by current is less than 2uA when CE/SS pin is at "LOW" status. The device is forced to switch off as the voltage at that pin is lower than the  stipulated voltage.
