Product Details

Description



Features:

-A Guaranteed Start-Up from less than 0.9 V.
-High Efficiency.
-Low Quiescent Current.
-Less Number of External Components needed.
-Low Ripple and Low Noise.
-Space Saving Packages: MSOP-8L and
MSOP-10L.






Application

-Pagers.
-Cameras.
-Wireless Microphones.
-Pocket Organizers.
-Battery Backup Suppliers.
-Portable Instruments.

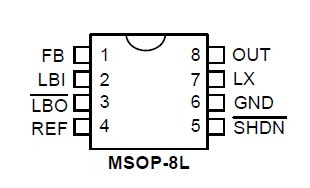

Pinout

  Connection Diagram




Specifications

Symbol
Parameter
Rating
Unit
VCC
Supply Voltage (OUT to GND)
-0.3 to 8.0
V
VBATT
Battery Voltage (Batt to GND)
-0.3 to 6.0
V
LBI, REF, FB, CLSEL to GND
-0.3 to VOUT+0.3
V
VSW
Switch Voltage (LX to GND)
-0.3 to VOUT+0.3
V
IOUT
Output Current (OUT)
-1.5 to +1.5
A
VLBO
LBO to GND
6.0
V
ISW
Switch Current (LX)
-1.5 to +1.5
A
TST
Storage Temperature Range
-65 to +150
TOT
Operation Temperature Range
-40 to +80


Part Number AP1601
Type Boost
Min and Max Input Voltage (V) 1.1 ~ 5.5
Output Voltage (V) 2 to 5.5 ADJ
Output Current (A) 0.42
Frequency (Hz) typ 100K Max
Efficiency (%) 90
Standby Quiescent Current (uA) typ 0.1





Description

The AP1601 is a high efficiency step-up DC/DC converter for applications using 1 to 4 NiMH battery cells. Only three external components are required to deliver a fixed output voltage of 3.3V or 5V. The AP1601 starts up from less than 0.9V input with 1mA load. Pulse Frequency Modulation scheme brings optimized performance for applications with light output loading and low input voltages. The output ripple and noise are lower compared with the circuits operating in PSM mode.

The PFM control circuit operating in 100KHz (max.) switching rate results in smaller passive components. The space saving MSOP packages make the AP1601 an ideal choice of DC/DC converter for space conscious applications, like pagers, electronic cameras, and wireless microphones.
