AP1603

Features:

-A Guaranteed Start-Up from less than 0.9 V.
-High Efficiency.
-Low Quiescent Current.
-Less Number of External Components needed.
-Low Ripple and Low Noise.
-Space Saving Pb-Free Packages: SOT23-6





Application

-Pagers.
-Cameras.
-Wireless Microphones.
-Pocket Organizers.
-Battery Backup Suppliers.
-Portable Instruments.





Pinout






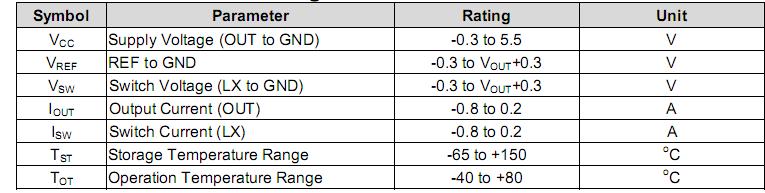

Specifications

Part Number	AP1603
Type	Boost
Min and Max Input Voltage (V)	0.9 ~ 5.5
Output Voltage (V)	3.3 / 5 2 to 5.5 ADJ
Output Current (A)	0.2
Frequency (Hz) typ	150K Max
Efficiency (%)	90
Standby Quiescent Current (uA) typ	0.1

Description

The AP1603 is a high efficiency step-up DC/DC converter for applications using 1 to 2 NiMH battery cells. Only three external components are required to deliver a fixed output voltage of 3.3V. The AP1603 starts up from less than 0.9V input with 1mA load. Pulse Frequency Modulation scheme brings optimized performance for applications with light output loading and low input voltages. The output ripple and noise are lower compared with the circuits operating in PSM mode.

The PFM control circuit operating in 150KHz (max.) switching rate results in smaller passive components. The space saving SOT23-6 packages make the AP1603 an ideal choice of DC/DC converter for space conscious applications, like pagers, electronic cameras, and wireless microphones.
