AON5802B

MOSFET N-CH 30V 7.2A DFN2X5

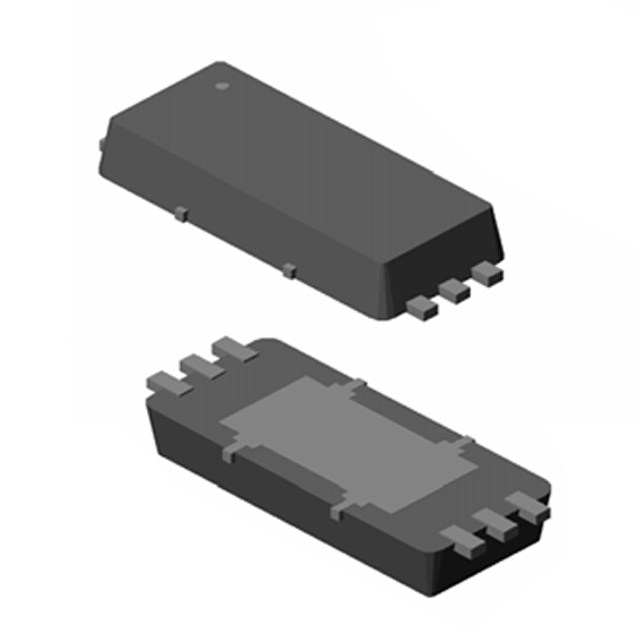

product image

AON5802B Picture
See larger image
SeekIC No. : 003429876 Detail

AON5802B: MOSFET N-CH 30V 7.2A DFN2X5

AON5802B Data Sheet

floor Price/Ceiling Price

US $ .11~.11 / Piece | Get Latest Price
Part Number:
AON5802B
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~5000
  • Unit Price
  • $.11
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Alpha & Omega Semiconductor Inc
FET Type: 2 N-Channel (Dual) Common Drain FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V Drain Source Voltage VDS : + / - 20 V
Current - Continuous Drain (Id) @ 25° C: 7.2A Rds On (Max) @ Id, Vgs: 19 mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id: 1.5V @ 250µA Gate Charge (Qg) @ Vgs: 24nC @ 10V
Input Capacitance (Ciss) @ Vds: 1150pF @ 15V Power - Max: 1.6W
Mounting Type: Surface Mount Package / Case: 6-WFDFN Exposed Pad
Supplier Device Package: 6-DFN (2x5)

Description

FET Feature: Logic Level Gate
Mounting Type: Surface Mount
Series: -
Drain to Source Voltage (Vdss): 30V
Vgs(th) (Max) @ Id: 1.5V @ 250µA
Power - Max: 1.6W
Current - Continuous Drain (Id) @ 25° C: 7.2A
Gate Charge (Qg) @ Vgs: 24nC @ 10V
Packaging: Tape & Reel (TR)
Manufacturer: Alpha & Omega Semiconductor Inc
FET Type: 2 N-Channel (Dual) Common Drain
Input Capacitance (Ciss) @ Vds: 1150pF @ 15V
Rds On (Max) @ Id, Vgs: 19 mOhm @ 7A, 4.5V
Package / Case: 6-WFDFN Exposed Pad
Supplier Device Package: 6-DFN (2x5)
