Product Details

Description



Features:

Very Low Dropout Voltage
600mA Output
Accurate to within 1.5%
30mA Quiescent Current
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Noise Reduction Bypass Capacitor
Power-Saving Shutdown Mode
Space-Saving SOT-25 Package
Factory Pre-set Output Voltages
Low Temperature Coefficient


Application

Instrumentation
Portable Electronics
Wireless Devices
Cordless Phones
PC Peripherals
Battery Powered Widgets
Electronic Scales

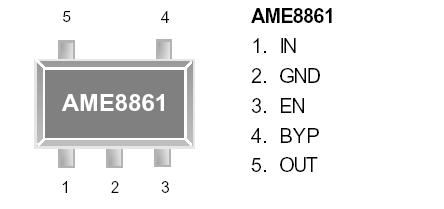

Pinout

Connection Diagram


Specifications

Parameter Maximum Unit
Input Voltage 8 V
Output Current PD / (VIN - VO) A
Input, Output Voltage GND - 0.3 to VIN + 0.3 V
ESD Classification B


Caution: Stress above the listed absolute maximum rating may cause permanent damage to the device


Description

The AME8861 family of positive, linear regulators feature low quiescent current (30mA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving SOT-25 package is attractive for "Pocket" and "Hand Held" applications.

These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" of operating conditions.

In applications requiring a low noise, regulated supply, place a 1000 pF capacitor between Bypass and ground.

The AME8861 is stable with an output capacitance of 2.2mF or greater.
