AME8815

Features: *Very Low Dropout Voltage* Guaranteed 1.5A Output* Accurate to within 1.5%* 45mA Quiescent Current Typically* Over-Temperature Shutdown* Current Limiting* Short Circuit Current Fold-back* Space-Efficient DPAK or SOT223 Package* Low Temperature CoefficientApplication*Instrumentation* Port...

product image

AME8815 Picture
See larger image
SeekIC No. : 004284707 Detail

AME8815: Features: *Very Low Dropout Voltage* Guaranteed 1.5A Output* Accurate to within 1.5%* 45mA Quiescent Current Typically* Over-Temperature Shutdown* Current Limiting* Short Circuit Current Fold-back* ...

AME8815 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AME8815
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Very Low Dropout Voltage
* Guaranteed 1.5A Output
* Accurate to within 1.5%
* 45mA Quiescent Current Typically
* Over-Temperature Shutdown
* Current Limiting
* Short Circuit Current Fold-back
* Space-Efficient DPAK or SOT223 Package
* Low Temperature Coefficient




Application

*Instrumentation
* Portable Electronics
* Wireless Devices
* PC Peripherals
* Battery Powered Widgets




Pinout

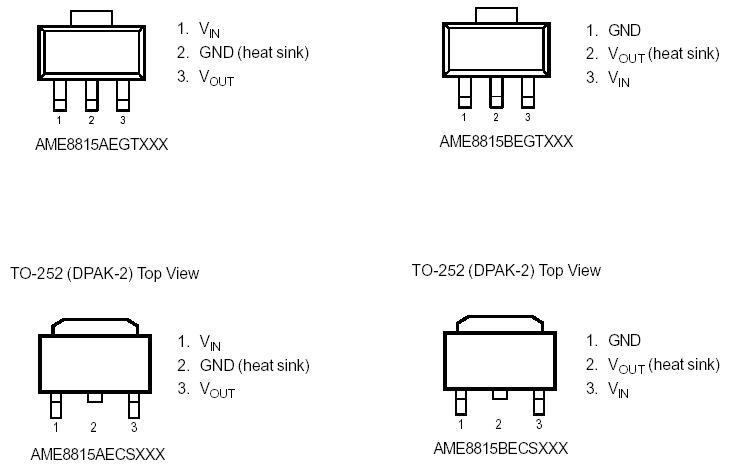

Connection Diagram




Specifications

Parameter Maximum Unit
Input Voltage 8 V
Output Current PD / (VIN - VO) mA
Output Voltage GND - 0.3 to VIN + 0.3 V
ESD Classification B





Description

The AME8815 family of linear regulators feature low quiescent current (45mA typ.) with low dropout voltage, making them ideal for battery applications. It is available in D2PAK and TO-220 packages. The space-efficient SOT-223 and DPAK package are attractive for "Pocket" and "Hand Held" applications.

Output voltages are set at the factory and trimmed to 1.5% accuracy.

These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" of operating conditions.

The AME8815 is stable with an output capacitance of 4.7mF or greater.
