Product Details

Description



Features:

24bit 2ch ADC
           - 64x Oversampling
           - Full differential Inputs
           - S/(N+D): 94dB
           - Dynamic Range, S/N: 108dB
           - Digital HPF for offset cancellation
           - I/F format: MSB justified or I2S
24bit 2ch DAC
           - 128x Oversampling
           - 24bit 8 times Digital Filter
             Ripple: ±0.005dB, Attenuation: 75dB
           - SCF
           - Differential Outputs
           - S/(N+D): 94dB
           - Dynamic Range, S/N: 110dB
           - De-emphasis for 32kHz, 44.1kHz and 48kHz sampling
           - Output DATT with 72dB att
           - Soft Mute
           - I/F format: MSB justified, LSB justified or I2S
High Jitter Tolerance
3-wire Serial Interface for Volume Control
Master Clock
           - 256fs/384fs/512fs/768fs/1024fs
5V operation
3V Power Supply Pin for 3V I/F
Small 28pin VSOP package

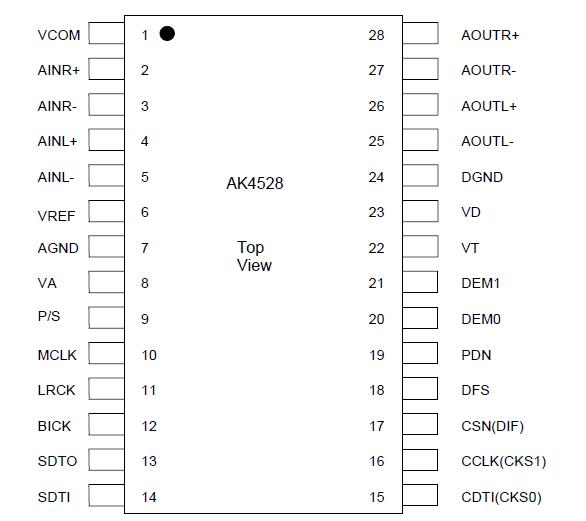

Pinout

Connection Diagram


Specifications

(AGND, DGND=0V; Note 1)
Parameter
Symbol
min
max
Units
Power Supplies

Analog
Digital
Output Buffer
VD-VA

VA
VD
VT
VDA
-0.3
-0.3
-0.3
-
6.0
6.0
6.0
0.3
V
V
V
V
Input Current, Any Pin Except Supplies
IIN
-
±10
mA
Analog Input Voltage
VINA
-0.3
VA+0.3
V
Digital Input Voltage
VIND
-0.3
VA+0.3
V
Ambient Temperature (powered applied)
Ta
-40
85
°C
Storage Temperature
Tstg
-65
150
°C

Note: 1. All voltages with respect to ground.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.


Description

The AK4528 is a high performance 24bit CODEC for the 96kHz recording system. The ADC has an Enhanced Dual Bit architecture with wide dynamic range. The DAC uses the new developed Advanced Multi Bit architecture and achieves low outband noise and high jitter tolerance by use of SCF (switched capacitor filter) techniques.
