AK4516A

Features: 1 . Resolution: 16 bits2 . Recording Function Analog Input PGA (Programmable Gain Amp) Peak-Meter Output Overflow Flag Output Auto Limitter Circuit Auto Recovery Circuit HPF(fc=3.4Hz) for offset cancel3 . Playback Function Digital De-emphasis Filter(tc=50/15us, fs=32kHz, 44.1kHz, 48...

product image

AK4516A Picture
See larger image
SeekIC No. : 004279325 Detail

AK4516A: Features: 1 . Resolution: 16 bits2 . Recording Function Analog Input PGA (Programmable Gain Amp) Peak-Meter Output Overflow Flag Output Auto Limitter Circuit Auto Recovery Circuit HPF(fc=3.4Hz)...

AK4516A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK4516A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1 . Resolution: 16 bits
2 . Recording Function
         Analog Input PGA (Programmable Gain Amp)
         Peak-Meter Output
         Overflow Flag Output
         Auto Limitter Circuit
         Auto Recovery Circuit
          HPF(fc=3.4Hz) for offset cancel
3 . Playback Function
          Digital De-emphasis Filter(tc=50/15us, fs=32kHz, 44.1kHz, 48kHz)
4 . Analog-Through Mode
5 . Power Management
6 . ADC Input (Including the PGA)
        Single-ended Input
        Input Level: 1.7Vpp (=0.57´VA, VA=3V)
        THD+N: -85dB
        DR,S/N: 90dB
7 . DAC Output
        Single-ended Output
        Output Level: 1.8Vpp (=0.6´VA, VA=3V, RL³10kW)
        Frequency Response: ±0.5dB(~20kHz)
        THD+N: -86dB
        DR,S/N: 90dB
8 . Master Clock: 256fs/384fs
9 . Audio Data Format
        ADC: 16bit, MSB first, MSB justified, IIS, LSB justified(only BICK=64fs correspondent)
         DAC: 16bit, MSB first,MSB justified, IIS, MSB justified
10 . Ta: -20~85°C
11 . Power Supply: 2.5~3.6V
12 . Power Dissipation: 18mA
13 . 24pinVSOP (0.65mm Pitch)

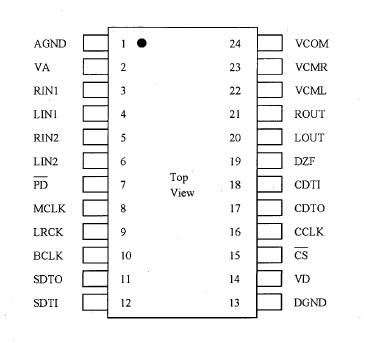

Pinout

Connection Diagram


Specifications

(AGND,DGND=0V; Note 1 )
Parameter
Symbol
min
max
Units
Power Supply:

Analog
Digital
VD-VA
VA
VD
DVDA
-0.3
-0.3
-
6.0
6.0
0.3
V
V
V
Input Current (any pins except for supplies)
IIN
-
±10
mA
Analog Input Voltage
LIN1,LIN2,RIN1,RIN2
VINA
-0.3
VA+0.3
V
Digital Input Voltage
VIND
-0.3
VD+0.3
V
Ambient Temperature (Powered applied)
Ta
-20
85
°C
Storage Temperature
Tstg
-65
150
°C

Note 1 . All Voltage with respect to ground.
