AK4523

Features: Stereo ADC - 64x Oversampling - Sample Rate Ranging from 16kHz to 48kHz - S/(N+D): 92dB - Dynamic range, S/N: 100dB - Digital HPF for offset cancellation Stereo DAC - 128x Oversampling - Sampling Rate Ranging from 16kHz to 48kHz- 2nd order SCF + 2nd order CTF- Digital de-emphasis for 3...

product image

AK4523 Picture
See larger image
SeekIC No. : 004279328 Detail

AK4523: Features: Stereo ADC - 64x Oversampling - Sample Rate Ranging from 16kHz to 48kHz - S/(N+D): 92dB - Dynamic range, S/N: 100dB - Digital HPF for offset cancellation Stereo DAC - 128x Oversampling -...

AK4523 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK4523
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Stereo ADC
      - 64x Oversampling
      - Sample Rate Ranging from 16kHz to 48kHz
      - S/(N+D): 92dB
      - Dynamic range, S/N: 100dB
      - Digital HPF for offset cancellation
  Stereo DAC
      - 128x Oversampling
      - Sampling Rate Ranging from 16kHz to 48kHz
      - 2nd order SCF + 2nd order CTF
      - Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling
      - S/(N+D): 90dB
      - Dynamic Range, S/N: 100dB
      - Soft Mute
High Jitter Tolerance
Master Clock: 256fs, 384fs, 512fs
Analog Power Supply: 4.5 to 5.5V, Digital Power Supply: 3.0 to 5.5V


Pinout

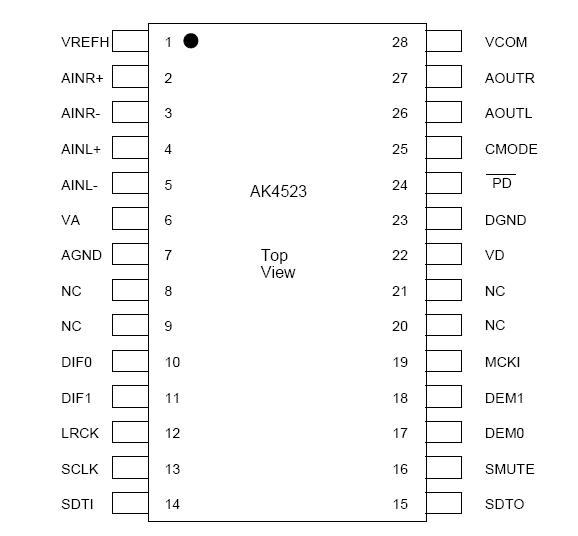

Connection Diagram


Specifications

(AGND, DGND=0V; Note 1)
Parameter
Symbol
min
max
Units
Power Supply Analog
Digital
|AGND DGND| (Note 2)
VA
VD
GND
-0.3
-0.3
-
6.0
6.0
0.3
V
V
V
Input Current (any pins except for supplies)
IIN
-
±10
mA
Analog Input Voltage
VINA
-0.3
VA+0.3
V
Digital Input Voltage
VIND
-0.3
VT+0.3
V
Ambient Temperature (Powered applied)
Ta
-40
85
°C
Storage Temperature
Tstg
-65
150
°C

Note:1. All voltages with respect to ground.
2. AGND and DGND must be same voltage.


Description

The AK4523 has a dynamic range of 100dB and is well-suited middle-range MD, surround system,musical instruments and car audio. Signal inputs and outputs are single-ended. The DAC outputs are analog filtered to remove out of band noise. External components are minimized.
