AK4124

Features:

1. SRC
        • Asynchronous Sample Rate Converter
        • Input Sample Rate Range (fsi) : 8kHz ∼ 216kHz
        • Output Sample Rate (fso) : 8kHz ∼ 216kHz
        • Input to Output Sample Rate Ratio : 1/6 to 6
        • THD+N : −130dB
        • Dynamic Range : 140dB (A-weighted)
        • I/F format : MSB justified, LSB justified and I²S compatible
        • PLL for Internal Operation Clock
        • Clock for Master mode : 128/192/256/384/512/768fsi, 128/192/256/384/512/768fso
        • SRC Bypass mode
        • Soft Mute Function
2. Power Supply
       • AVDD, DVDD: 3.0 ∼ 3.6V (typ. 3.3V)
3. Ta = −40 ∼ 85°C
4. Package : 30pin VSOP

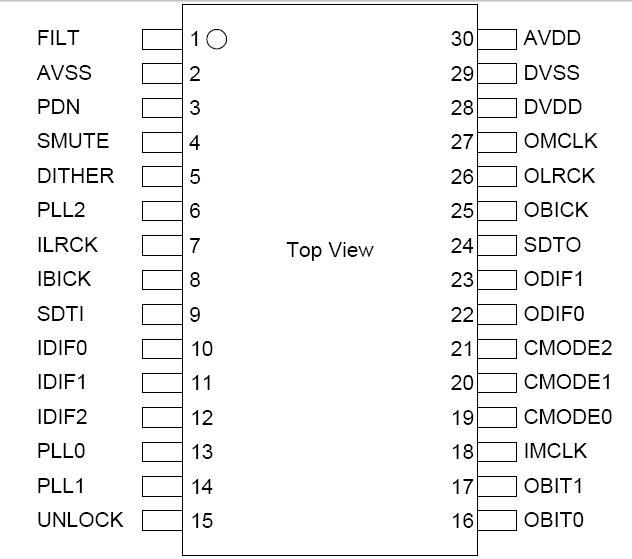

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supply	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD GND	-0.3 -0.3 -	4.6 4.6 0.3	V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note 1. All voltages with respect to ground.
Note 2. AVSS, BVSS and DVSS must be connected to the same ground.


Description

AK4124 is a stereo digital sample rate converter (SRC). The input sample rate ranges from 8kHz to 216kHz. The output sample rate is from 8kHz to 216kHz. By using the product, the system can take very simple configuration because the AK4124 has an internal PLL and does not need any master clock at slave mode. Then it is suitable for the application interfacing to different sample rates like high-end Car Audio, DVD recorder, etc.
