AK4101A

Features:

Sampling Rate up to 192kHz
Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats
Generates CRCC codes and parity bits
Four on-chip RS422 line drivers
64-byte on-chip buffer memory for Channel Status and User bits
Supports synchronous/asynchronous access to Channel Status and User bits
Supports multiple clock frequencies: 128fs, 256fs, 384fs and 512fs
Supports Left/Right justified and I2S audio formats
Easy to use 4 wire, Serial Host Interface
Audio Routing Mode (Transparent Mode)
Power supply: 4.75 to 5.25V
TTL level I/F
Small Package: 44pin LQFP
Temperature range of - 40 to 85 °C

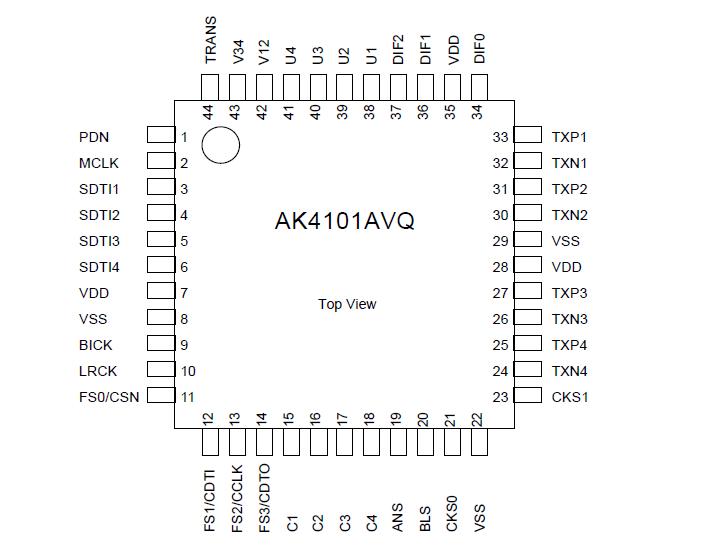

Pinout




Specifications

(VSS=0V; Note 1)

Parameter	Symbol	min	max	Units
Power Supplies	VDD	−0.3	6.0	V
Input Current, Any Pin Except Supplies	IIN	-	±10	mA
Input Voltage	VIN	-0.3	VDD+0.3	V
Ambient Temperature (powered applied)	Ta	-40	85	°C
Storage Temperature	Tstg	-65	150	°C

Notes:
   1. All voltages with respect to ground.



Description

The AK4101A is a four outputs digital audio transmitter (DIT) which supports data rate up to 192kHz sample rate operation. It  supports AES3, IEC60958, S/PDIF & EIAJ CP1201 interface standards. The product accepts audio data and auxiliary information data and etc, which is then biphase-encoded and driven on to a cable. The audio serial port supports eight formats.
