AK4114

Features:

AES3, IEC60958, S/PDIF, EIAJ CP1201 Compatible
Low jitter Analog PLL
PLL Lock Range : 32kHz to 192kHz
Clock Source: PLL or X'tal
8-channel Receiver input
2-channel Transmission output (Through output or DIT)
Auxiliary digital input
De-emphasis for 32kHz, 44.1kHz, 48kHz and 96kHz
Detection Functions
       • Non-PCM Bit Stream Detection
       • DTS-CD Bit Stream Detection
       • Sampling Frequency Detection
          (32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz)
       • Unlock & Parity Error Detection
       • Validity Flag Detection
Up to 24bit Audio Data Format
Audio I/F: Master or Slave Mode
40-bit Channel Status Buffer
Burst Preamble bit Pc and Pd Buffer for Non-PCM bit stream
Q-subcode Buffer for CD bit stream
Serial P I/F
Two Master Clock Outputs: 64fs/128fs/256fs/512fs
Operating Voltage: 2.7 to 3.6V with 5V tolerance
Small Package: 48pin LQFP
Ta: -10 to 70°C

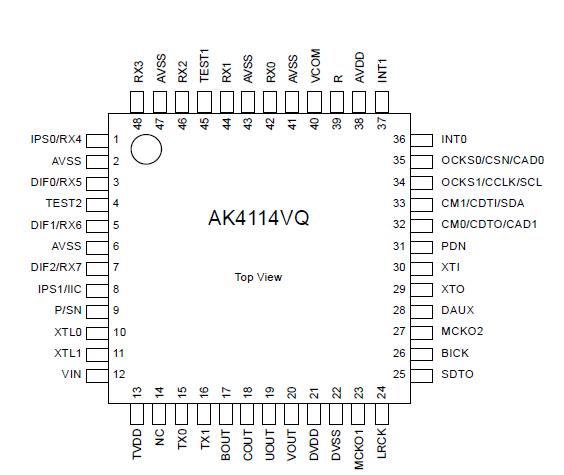

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supplies	Analog Digital Input Buffer |AVSS-DVSS| (Note 2)	AVDD DVDD TVDD GND	-0.3 -0.3 -0.3 -	4.6 4.6 6.0 0.3	V V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Input Voltage (Except XTI pin) Input Voltage (XTI pin)		VIN VINX	-0.3 -0.3	TVDD+0.3 DVDD+0.3	V V
Ambient Temperature (powered applied)		Ta	-10	70	°C
Storage Temperature		Tstg	-65	150	°C

Note1. All voltages with respect to ground.
Note 2. AVSS and DVSS must be connected to the same ground.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
                 Normal operation is not guaranteed at these extremes.


Description

The AK4114 is a digital audio transceiver supporting 192kHz, 24bits. The channel status decoder supports both consumer and professional modes. The AK4114 can automatically detect a Non-PCM bit stream. When combined with the multi channel codec (AK4527B or AK4529), the two chips provide a system solution for AC-3 applications. The dedicated pins or a serial P I/F can control the mode setting.The small package, 48pin LQFP saves the system space.
*AC-3 is a trademark of Dolby Laboratories.
