AK2546

Features:

· 7ch short haul T1 transceiver
· Jitter Tolerance: Compliant with GR-499 Category I, II
· Transmitter Pulse Shape: Compliant with GR-499
· Loss of Signal Detection
· Selectable Signal Polarity
· Local/Remote Loopback
· Parallel Microprocessor Interface
· Single 3.3V±5% Operation
· Low Power Consumption (105mW/ch: Typ)
· Pin-to-pin compatible with AK2548 (7 channel E1 transceiver)
· Small Plastic Package 144pin LQFP

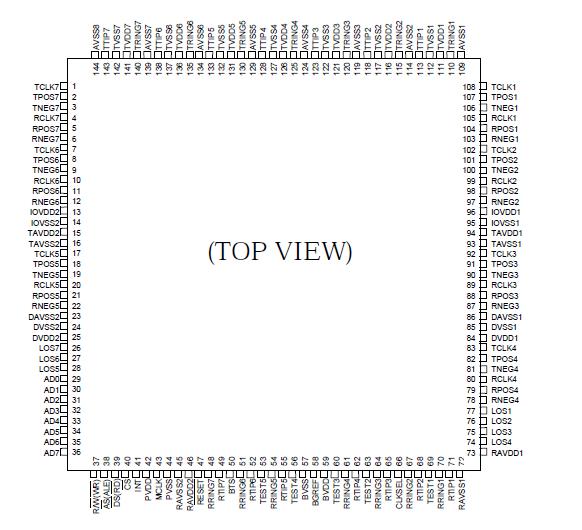

Pinout




Specifications

Parameter	Symbol	Min	Typ	Max	Units	Condition
DC Supply	VDD	-0.3		6.5	V
Input Voltage	VIN1	-0.3		VDD+0.3	V	Apply to except for RTIPx, RRINGx
	VIN2	-3		VDD+0.3	V	Apply to RTIPx, RRINGx
Input Current	IIN			10	mA
Storage Temperature	Tstg	-55		130	°C

Note) All voltages with respect to ground. :
         All negative voltage pins = 0V. VDD apply to all positive voltage pins.


Description

The AK2546 is the 7 channel short haul T1 transceiver for a SONET MUX, M13 MUX, etc.It includes seven independent transmitters, clock and data recovery, LOS detector, control circuit in one LQFP-144 package which saves space, power consumption and the board design time.Internally generated transmit pulse provides the appropriate pulse shape for line length ranging from 0 to 655 feet from a DSX-1 cross connect.
