AK2500B

Features: - Robust DSP based line receiver- AK2500B Provides Complete Analog Line Receiver for DS3 and STS-1 Applications- Provides Line Equalization, and Clock and Data Recovery FunctionsApplication- Interfacing network transmission equipment such as SONET multiplexor and M13 to a DSX-3 cross c...

product image

AK2500B Picture
See larger image
SeekIC No. : 004279243 Detail

AK2500B: Features: - Robust DSP based line receiver- AK2500B Provides Complete Analog Line Receiver for DS3 and STS-1 Applications- Provides Line Equalization, and Clock and Data Recovery FunctionsApplicat...

AK2500B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK2500B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- "Robust" DSP based line receiver
- AK2500B Provides Complete Analog Line Receiver for DS3 and STS-1 Applications
- Provides Line Equalization, and Clock and Data Recovery Functions




Application

- Interfacing network transmission equipment such as SONET multiplexor and M13 to a DSX-3 cross connect.
- Interfacing customer premises equipment to a line.


Pinout

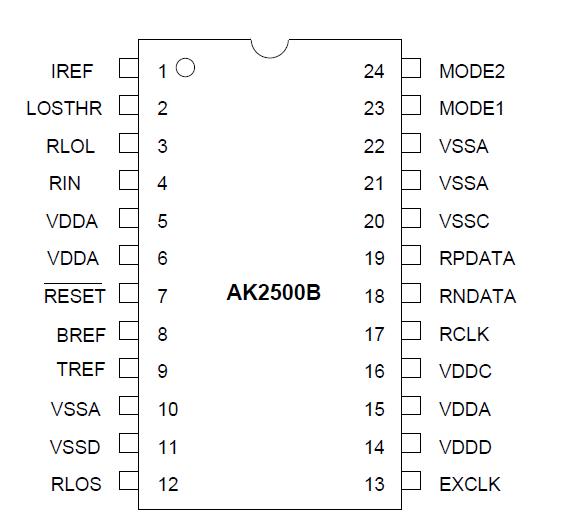

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Units

DC Supply (referenced to GND) (Note 1)
V+
-0.3
4.6
V
Input Voltage, Any Pin
Vin
GND-0.3
(V+)+0.3
V
Input Current, Any Pin (Note 2)
Iin
-
10
MA
Ambient Operating Temperature
TA
-40
85
°C
Storage Temperature
Tstg
-65
150
°C
Power Dissipation
PD
-
1
W
WARNING: Operation at or beyond these limits may result in permanent damage to the device. Normal
                  operation is not guaranteed at these extremes.
Note; 1.GND=VSSA=VSSC=VSSD=0V
          2.Transient currents of up to 100 mA will not cause SCR latch up.


Description

The AK2500B is a DSP based line receiver. It provides the analog receive line interface functions for a 44.736 MHz DS3 or 51.84 MHz STS-1 interface. The device operates from a single +3.3 Volt supply and is transparent to the
framing format.
