AIC2511

Features:

Operating Input Voltage From 4.5V to 24V

3.3V, 5V, 12V and Adjustable Output Version

Adjustable Version Output Voltage Range, 1.8V to 24V 4% max Over Line and Load Regulation

Available in TO-263-5, TO-220-5, TO-220B and TO-252-5 Package

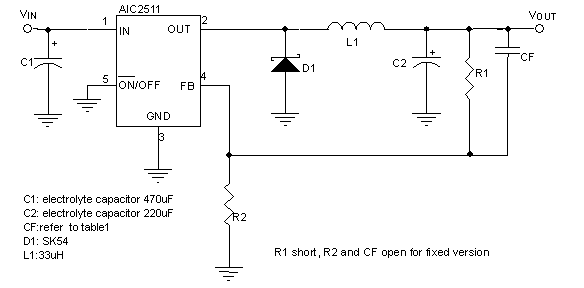

Requires Only 4 External Components.

150KHz Fixed Constant Frequency

Low Power Standby Mode, IQ Typically 80mA

TTL Shutdown Capability.

Current Limit and Thermal Shutdown Protection.

3A Guaranteed Output Load Current

Application

Fixed Voltage power supply for LCD Monitor and LCD TV

On-Card Switching regulators

Simple High Efficiency Step-down regulator

Pinout






Description

Switching frequency up to 150KHz is achievable thus allowing smaller-sized filter components. Internal current limit and thermal shutdown circuits provide protection from overloads. The internal precise reference combined with voltage feedback loop of AIC2511 provides optimum output voltage accuracy and fast load transient response.
