AIC2510

Features:

Operating Input Voltage From 4.5V to 30V
3.3V, 5V, 12V and Adjustable Output Version
Adjustable Version Output Voltage Range, 1.8V to 30V 4% max Over Line and Load Regulation
Available in TO-263-5, TO-220-5 and TO-220B Package
Requires Only 4 External Components
150KHz Fixed Constant Frequency
Low Power Standby Mode, IQ Typically 80uA
TTL Shutdown Capability
Current Limit and Thermal Shutdown Protection
3A Guaranteed Output Load Current

Application

Fixed Voltage power supply for LCD Monitor and LCD TV
On-Card Switching regulators
Simple High Efficiency Step-down regulator

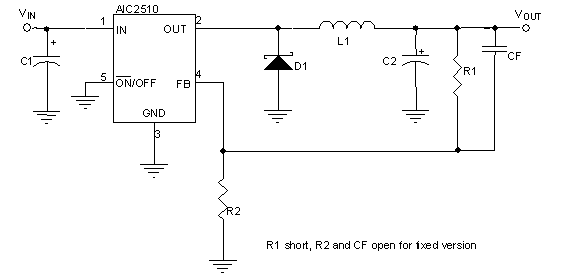

Pinout






Description

The AIC2510 series are step-down monolithic PWM converters for delivering 3A at fixed voltages of 3.3V, 5.0V, 12V and using an external divider to adjust output voltage from 1.8V to 30V with excellent line and load regulation.
Switching frequency up to 150KHz is achievable thus allowing smaller-sized filter components. Internal current limit and thermal shutdown circuits provide protection from overloads. The internal precise reference combined with voltage feedback loop of AIC2510 provides optimum output voltage accuracy and fast load transient response.
