AIC1896

Features: Fixed Frequency 1.4MHz Current-Mode PWM Operation. Adjustable Output Voltage up to 30V. Guaranteed 13V/ 200mA Output with 5V Input. 2.5V to 10V Input Range. Maximum 0.1A Shutdown Current. Programmable Soft-Start. Tiny Inductor and Capacitors are allowed. Space-Saving SOT-23...

product image

AIC1896 Picture
See larger image
SeekIC No. : 004279115 Detail

AIC1896: Features: Fixed Frequency 1.4MHz Current-Mode PWM Operation. Adjustable Output Voltage up to 30V. Guaranteed 13V/ 200mA Output with 5V Input. 2.5V to 10V Input Range. Maximum 0.1A Shutdown C...

AIC1896 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1896
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  • Fixed Frequency 1.4MHz Current-Mode PWM Operation.
  • Adjustable Output Voltage up to 30V.
  • Guaranteed 13V/ 200mA Output with 5V Input.
  • 2.5V to 10V Input Range.
  • Maximum 0.1A Shutdown Current.
  • Programmable Soft-Start.
  • Tiny Inductor and Capacitors are allowed.
  • Space-Saving SOT-23-6 and TSOT-23-6 Package.





    • Application

    • White LED Backlight.
    • OLED Driver.
    • LCD Bias.





    Pinout

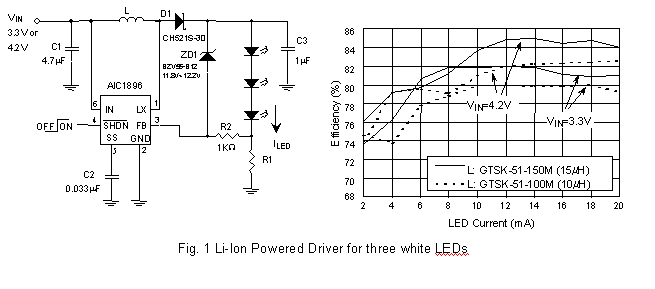

    Connection Diagram




    Specifications

    LX to GND............... .... -0.3V to +33V
    FB to GND.................... -0.3V to +6V
    IN,SHDN ....................-0.3V to +11V
    SS to GND.................... -0.3V to +6V
    LX Pin RMS Current 0.6A
    Continuous Power Dissipation (TA = +70°C)
    6-Pin SOT23 (derate 9.1mW/°C above +70°C) ...727mW
    Operating Temperature Range...... . -40°C to 85°C
    Junction Temperature................. 125°C
    Storage Temperature Range ........-65°C to 150°C
    Lead Temperature (soldering, 10s).......... 260°C
    Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.




    Description

    AIC1896 is a current-mode pulse-width modulation (PWM), step-up DC/DC Converter. The built-in high voltage N-channel MOSFET allows AIC1896 for step-up applications with up to 30V output voltage, as well as for Single Ended Primary Inductance Converter (SEPIC) and other low-side switching DC/DC converter.

    The high switching frequency (1.4MHz) allows the use of small external components. The Soft-Start function is programmable with an external capacitor, which sets the input current ramp rate.

    The AIC1896 is available in a space-saving SOT-23-6 package.
