AIC1085

Features: Dropout Voltage 1.3V at 3A Output Current. Fast Transient Response. Extremely Tight Line and Load Regulation. Internal Thermal and Current Limiting. Adjustable Output Voltage or Fixed 1.5V, 1.8V,3.3V. Standard 3-Pin Power Packages.Application Mother Board I/O Power Supplies. Microproces...

product image

AIC1085 Picture
See larger image
SeekIC No. : 004278984 Detail

AIC1085: Features: Dropout Voltage 1.3V at 3A Output Current. Fast Transient Response. Extremely Tight Line and Load Regulation. Internal Thermal and Current Limiting. Adjustable Output Voltage or Fixed 1.5...

AIC1085 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1085
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Dropout Voltage 1.3V at 3A Output Current.
Fast Transient Response.
Extremely Tight Line and Load Regulation.
Internal Thermal and Current Limiting.
Adjustable Output Voltage or Fixed 1.5V, 1.8V,3.3V.
Standard 3-Pin Power Packages.




Application

Mother Board I/O Power Supplies.
Microprocessor Power Supplies.
High Current Regulator.
Post Regulator for Switching Supply.

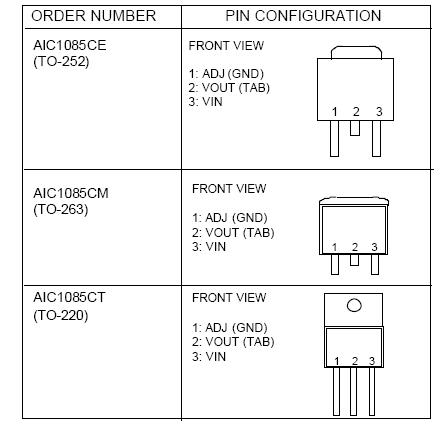

Pinout

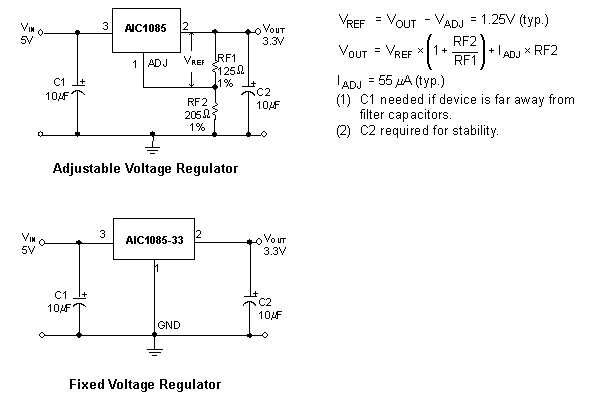

Connection Diagram

Connection Diagram




Specifications

Vin pin to ADJ/ GND pin.................................................................................7V
Operating Junction Temperature Range .......................................0°C~ 125°C
Storage Temperature Range ...................................................- 65°C ~ 150°C
Thermal Resistance Junction to Case TO-252.......................................15°C/W
TO-263, TO-220 .........................6°C /W
Thermal Resistance Junction to Ambient TO-252................................100°C/W
(Assume no ambient airflow, no heatsink) TO-263............................ 60°C /W
TO-220 .................................50°C /W
Lead Temperature (Soldering) 10 sec. ...................................................260°C




Description

The AIC1085 is a low dropout three terminal regulator with 3A output current capability. The output voltage is adjustable with the use of a resistor divider or fixed 1.5V, 1.8V, and 3.3V. Dropout is guaranteed at a maximum of 1.4V at maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperatures.


The AIC1085 features:
Mother Board I/O Power Supplies.
Microprocessor Power Supplies.
High Current Regulator.
Post Regulator for Switching Supply.
