Product Details

Description



Features:

Regulated ±4% Output Voltage
Output Current: 100mA at VIN =3.1V
Input Range: 2.7V to 4.5V
No Inductors Required
Very Low Shutdown Current: <1µA
1.8MHz Switching Frequency
Short-Circuit and Over Temperature Protection
Low Profile Package: SOT-23-6




Application

White LEDs Backlighting
SIM Interface Supplies for Cellular Telephones
Li-Ion Battery Backup Supplies
Local 3V to 5V Conversion
Smart Card Readers
PCMCIA Local 5V Supplies




Pinout

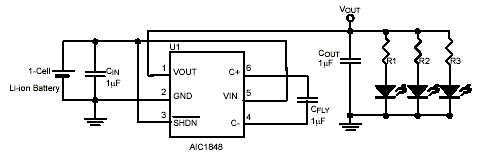

Connection Diagram

Connection Diagram




Specifications

VIN to GND 6V
VOUT to GND 6V
All Other Pins to GND 6V
VOUT Short-Circuit Duration Continuous
Operating Temperature Range - 40°C to 85 °C
Maximum Junction Temperature 125°C
Storage Temperature Range -65°C to 150 °C
Lead Temperature (Sordering 10 Sec.)260°C




Description

The AIC1848 charge pump is a micropower charge pump DC/DC converter that produces a regulated output voltage from 2.7V to 4.5V input voltage. Low external-part count (one flying capacitor and two small bypass capacitors) makes the AIC1848 ideal for small, battery-powered applications.

The AIC1848 operates as a constant frequency mode switched capacitor voltage doubler to produce a regulated output and features with thermal shutdown capability and short circuit protection.

The AIC1848 is available in a space-saving SOT-23-6 package.
