Features:

·Ultra-Low Quiescent Current at 10mA (VCC=7V, VC=3.5V).
·Ultra-Low Power-Down Current at 0.2mA (VCC =3.8V, VC=1.9V).
·Wide Supply Range: 2 to 18V.
·Precision Overcharge Protection Voltage
4.35V ± 30mV for the AIC1802A
4.30V ± 30mV for the AIC1802B
4.25V ± 30mV for the AIC1802C
·Built-in Delay Circuits for Overcharge, Overdischarge and Overcurrent Protection.
·Overcharge and Overdischarge Delay Time
can be Extended by External Capacitors.
· Built-in Cell-balancing Bleeding Network under Overcharge Condition.






Application

·Protection IC for Two-Cell Lithium-Ion Battery Pack




Pinout

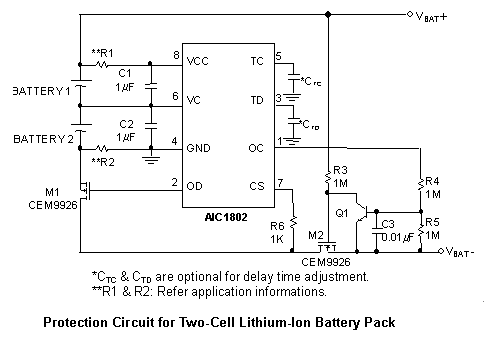

  Connection Diagram




Specifications

Supply Voltage .................................................. 18V
DC Voltage Applied on VC, CS, OC, OD Pins ........18V
DC Voltage Applied on TC, TD Pins....................... 5V
Operating Temperature Range .............. -40~85
Storage Temperature Range ............... - 65~150





Description

The AIC1802 battery protection IC is designed to protect lithium-ion batteries from damage due to overcharging, overdischarging, and overcurrent for two series cells in portable phones and laptop computers. It can be a part of the low-cost charge control system within a two-cell lithium-ion battery pack.

Safe and full utilization charging is ensured by the accurate 30mV overcharge detection. Three different specification values for overcharge protection voltage are provided for various protection requirements. The very low standby current of AIC1802 drains little current from the cells while in storage.
