AIC1750

Features:

FEATURES

• Up to 150mA Output Current (each LDO).
• Low Quiescent Current50A at single output.
• Low Dropout145mV at 100mA load current and 3.3V output voltage.
• High PSRR60dB at 1kHz.
• Independent Shutdown Controls.
• Current Limit and Thermal Protection.
• Tiny SOT-23-6, TSOT-23-6 and DFN6L 2x2 Package.

Application

• Cellular Phones.
• PDAs.
• Digital Still Cameras.
• Portable Consumer Equipments.

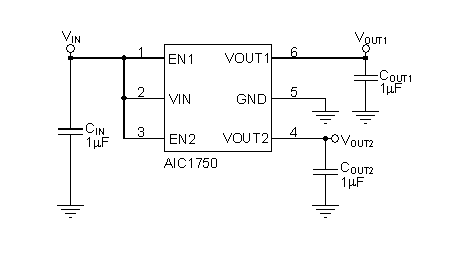

Pinout

Description

The AIC1750 is a dual output linear regulator in a tiny SOT-23-6, TSOT-23-6 and DFN6L 2X2 package. It is optimized for low ESR ceramic capacitors operation and up to 150mA continuous current on each output.
The AIC1750 offers high precision output voltage of 2%. At 100mA load current, a 145mV dropout is performed when output voltage is equal to 3.3V. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The high ripple rejection and low noise of the product provide enhanced performances for critical applications such as cellular phones, and PDAs.
The AIC1750 includes current limit and thermal shutdown protection. Each of the output is controlled independently.
