AIC1731

Features: ·Active Low Shutdown Control.·Very Low Quiescent Current.·Very Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version)·1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output Voltage.·Short Circuit and Thermal Protection.·±2% Output Tolerance.·Miniature Package: SOT-23-5Application·...

product image

AIC1731 Picture
See larger image
SeekIC No. : 004279082 Detail

AIC1731: Features: ·Active Low Shutdown Control.·Very Low Quiescent Current.·Very Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version)·1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output Voltage....

AIC1731 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1731
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Active Low Shutdown Control.
·Very Low Quiescent Current.
·Very Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version)
·1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output Voltage.
·Short Circuit and Thermal Protection.
·±2% Output Tolerance.
·Miniature Package: SOT-23-5




Application

·PDA
·DSC
·Notebook
·Pagers
·Personal Communication Equipment
·Cordless Telephones
·Portable Instrumentation
·Portable Consumer Equipment
·Battery Powered Systems




Pinout

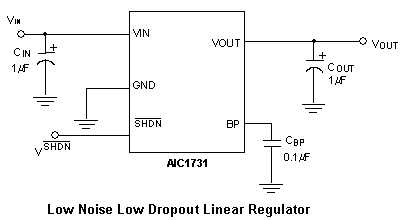

Connection Diagram




Specifications

Supply Voltage .........................................................................12V
Shutdown Terminal Voltage .....................................................12V
Noise Bypass Terminal Voltage ..................................................5V
Operating Temperature Range .....................................-40~85
Maximum Junction Temperature 125°C
Storage Temperature Range .....................................-65ºC~150
Lead Temperature (Soldering, 10 sec) 260°C
Thermal Resistance (Junction to Case) SOT-23-5 ..........130°C /W
Thermal Resistance Junction to Ambient SOT-23-5 ........220°C /W




Description

AIC1731 is a 300mA low noise, low dropout linear regulator, and is housed in small SOT-23-5 package. The device is in the "ON" state when the SHDN pin is set to logic high level. An internal P-MOSFET pass transistor is used to achieve 470mV low dropout voltage at 300mA load current. It offers high precision output voltage of ±2%. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The internal reverse bias protection eliminates the requirement for a reverse voltage protection diode. The high ripple rejection and low noise of AIC1731 provide enhanced performance for critical applications. The noise bypass pin can be connected an external capacitor to reduce the output noise level.
