AIC1722

Features:

Low Dropout Voltage of 130mV at 100mA Output Current (5.2V Output Version).
Guaranteed 300mA Output Current.
Internal 1.3 P-MOSFET Draws no Base Current.
Low Ground Current at 55A.
2% Accuracy Output Voltage of 3.3V/ 3.5V/3.7V/ 3.8V/ 5.0V/ 5.2V.
Input Voltage Range up to 12V.
Needs only 1F for Stability.
Current and Thermal Limiting.

Application

 Voltage Regulator for CD-ROM Drivers.
 Voltage Regulator for LAN Cards.
 Voltage Regulator for Microprocessor.
 Wireless Communication Systems.
 Battery Powered Systems.

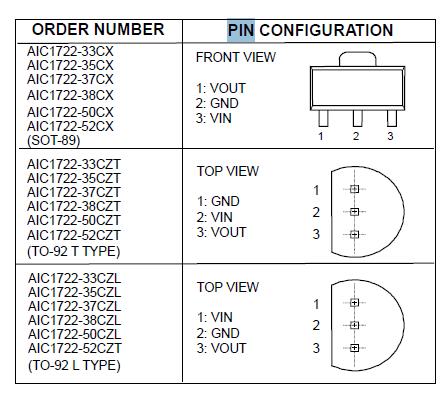

Pinout

PIN DESCRIPTION
VOUT PIN - Output pin.
GND PIN - Power GND.
VIN PIN - Power Supply Input.

Specifications

Input Supply Voltage ........................................................... -0.3~12V
Operating Junction Temperature Range ..................... -40°C~ 125°C
Storage Temperature  Range ...................................... -65°C~150°C
Power Dissipation                              SOT-89 Package ................ 0.5W
                                                          TO-92 Package .................. 0.5W


Description

The AIC1722 is a 3-pin low dropout linear regulator. The superior characteristics of the product  include zero base current loss, very low dropout voltage, and 2% accuracy output voltage.Typical ground current remains approximately 55A, from no load to maximum loading conditions. Dropout voltage at 100mA output current is exceptionally low:130mV for the AIC1722-50 and AIC1722-52 , 180mV  for  the  AIC1722-33,AIC1722-35,and AIC1722-37 AIC1722-38.Output current limiting and thermal limiting are built in to provide maximal protection to the product against fault conditions.

The AIC1722 comes in the popular 3-pin SOT-89 and TO-92 packages.
