AIC1714

Features:

Low Power Consumption, 0.78W(TO-92 Package)

Output Short Circuit Protected.

Wide Operating Voltage up to -13V.

Low 6A Quiescent Supply Current

Stable with 1F COUT

-5.0V, -3.3V, or -3.0V Output Voltage

Space-Saving Package: TO-92 or SOT-89

Application

LCD display

Cameras

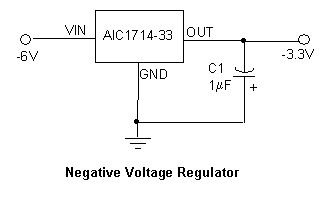

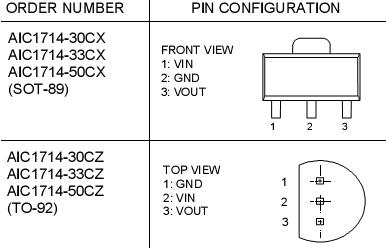

Pinout








Specifications

Supply Voltage .........................................................-13V
Operating Temperature Range ............... - 20°C~80°C
Storage Temperature Range ............... - 65°C~150°C
Power Dissipation SOT-89 Package ................... 0. 80W
TO-92 Package .................... 0.78W




Description

The AIC1714 is 3-terminal negative voltage regulators, which transform from negative supply voltage. The high capacity and long service life of battery, which result from the characteristics of AIC1714 - low quiescent current consumed and low dropout voltage needed, perfectly meet the requirement for battery-powered portable devices as well as LCD displays.
The AIC1714 is available in several preset output voltage versions (-5.0V, -3.3V, and -3.0V) with short circuit protection and offered in TO-92 and SOT-89 packages.
