AIC1639

Features: A Guaranteed Start-Up from less than 0.9 V. High Efficiency. Low Quiescent Current. Less Number of External Components needed. Low Ripple and Low Noise. Fixed Output Voltage: 2.7, 3.0V, 3.3V, and 5V. Driver for External Transistor. Space Saving package: SOT-23, SOT-89 and T...

product image

AIC1639 Picture
See larger image
SeekIC No. : 004279055 Detail

AIC1639: Features: A Guaranteed Start-Up from less than 0.9 V. High Efficiency. Low Quiescent Current. Less Number of External Components needed. Low Ripple and Low Noise. Fixed Output Voltage: 2.7...

AIC1639 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1639
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  • A Guaranteed Start-Up from less than 0.9 V.
  • High Efficiency.
  • Low Quiescent Current.
  • Less Number of External Components needed.
  • Low Ripple and Low Noise.
  • Fixed Output Voltage: 2.7, 3.0V, 3.3V, and 5V.
  • Driver for External Transistor.
  • Space Saving package: SOT-23, SOT-89 and TO-92





    • Application

  • Pagers.
  • Cameras.
  • Wireless Microphones.
  • Pocket Organizers.
  • Battery Backup Suppliers.
  • Portable Instruments.





    • Pinout

    Connection Diagram

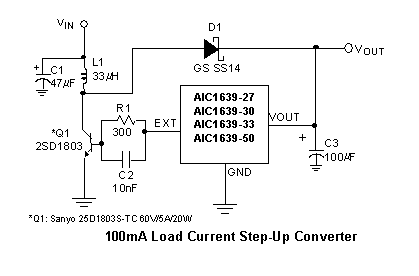

    TYPICAL APPLICATION
    Connection Diagram





    Description

    The AIC1639 is a high efficiency step-up DC/DC controller for applications using 1 to 4 battery cells. Only three external components are required to deliver a fixed output voltage of 2.7, 3.0V, 3.3V, or 5V. The AIC1639 starts up from less than 0.9V input with 1mA load. Pulse Frequency Modulation scheme brings opti-mized performance for applications with light output loading and low input voltages. The out-put ripple and noise are lower compared with the circuits operating in PSM mode.

    The PFM control circuit operating in 100KHz (max.) switching rate results in smaller passive components. The space saving SOT-23, SOT-89 and TO-92 packages make the AIC1639 an ideal choice of DC/DC controller for space conscious applications, like pagers, electronic cameras, and wireless microphones.

    Provided with an external transistor driver pin (EXT), the AIC1639 is recommended for appli-cations requiring current as large as several tens to several hundreds of milli-amperes.
