AIC1565

Features:

• Continuous 2A Output Current
• Low ESR Output Ceramic Capacitor Compatible
• Up to 95% Efficiency
• 0.25 On-Resistance of Internal Power MOSFET
• Fixed 440kHz Switching Frequency
• 10A Shutdown Current
• 4.75V to 15V Wide Input Voltage Range
• Output Voltage Down to 0.9V
• Current Limit and Thermal Shutdown Protection
• Available in SOP-8 Exposed Pad Package

Application

• LCD Monitors
• Communication Equipment
• Distributed Power Systems
• Digital Photo Frame

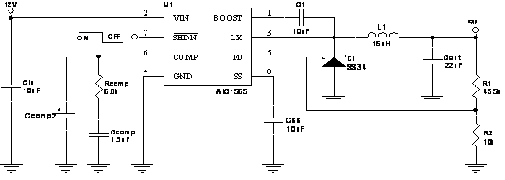

Pinout

Description

The AIC1565 is a high efficiency, step-down DC/DC converter that builds in a high power MOSFET. It offers continuous 2A output current over a very wide input voltage range with excellent load and line regulation.
Well-performed current mode operation makes fast transient response and feedback loop stabilization easier.
The AIC1565 draws only 10A supply current in shutdown mode. Current limit and thermal shut-down function are also provided to prevent dam-age. The product is available in an 8-pin SOP exposed pad package.

The AIC1565 is a high efficiency, step-down DC/DC converter that builds in a high power MOSFET. It offers continuous 2A output current over a very wide input voltage range with excellent load and line regulation.
Well-performed current mode operation makes fast transient response and feedback loop stabilization easier.
The AIC1565 draws only 10A supply current in shutdown mode. Current limit and thermal shut-down function are also provided to prevent dam-age. The product is available in an 8-pin SOP exposed pad package.
