AIC1521

Features: 120m (5V Input) High-Side MOSFET Switch. 500mA Continuous Load Current. 80A Typical On-State Supply Current. 1A Typical Off-State Supply Current. Current-Limit / Short Circuit Protection. Thermal Limiting Protection under Overcurrent Condition. Undervoltage Lockout Ensures that Switch i...

product image

AIC1521 Picture
See larger image
SeekIC No. : 004278999 Detail

AIC1521: Features: 120m (5V Input) High-Side MOSFET Switch. 500mA Continuous Load Current. 80A Typical On-State Supply Current. 1A Typical Off-State Supply Current. Current-Limit / Short Circuit Protection....

AIC1521 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1521
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

120m (5V Input) High-Side MOSFET Switch.
500mA Continuous Load Current.
80A Typical On-State Supply Current.
1A Typical Off-State Supply Current.
Current-Limit / Short Circuit Protection.
Thermal Limiting Protection under Overcurrent Condition.
Undervoltage Lockout Ensures that Switch is off at Start Up.
Output can be Forced Higher than Input (Off-State).
Slow Turn ON and Fast Turn OFF.
Active-High or Active-Low Enable.




Application

Motherboard USB Management.
USB Power Management.
Hot Plug-In Power Supplies.
Battery-Charger Circuit.
Power Distribution Switch.

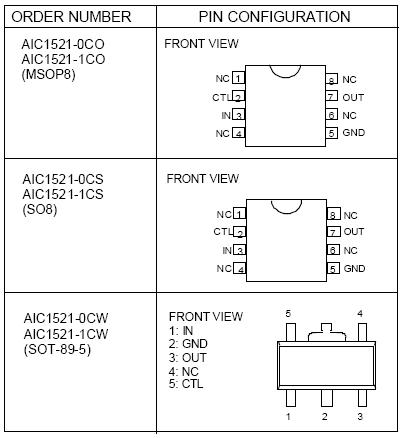

Pinout

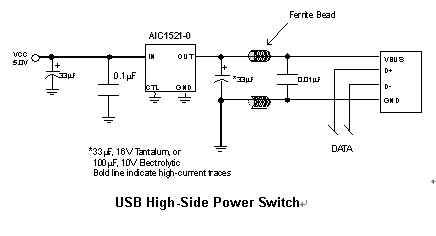

Connection Diagram

Connection Diagram




Specifications

Supply Voltage (VIN) ..............................................................................................7.0V
Operating Temperature Range ...............................................................-40°C ~ 85°C
Storage Temperature Range............................................................... -65°C ~ 150°C




Description

The AIC1521 is an integrated high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. The high-side switch is a MOSFET with 120mohm RDS(ON), which meets USB voltage drop requirements for maximum transmission wire length. The switch ON/OFF is controlled by CTL pin.

Output current of AIC1521 is typically limited to 1.0A, well below the 5A safety requirement, and thermal shutdown function shuts the switch off to prevent damage under overcurrent conditions. Guaranteed minimum output rise time limits inrush current during hot plug-in, minimizing EMI and preventing the voltage at upstream port from dropping excessively.
