Description



Features:

120m (5V Input) High-Side MOSFET Switch.
500mA Continuous Load Current.
80A Typical On-State Supply Current.
Current-Limit / Short Circuit Protection.
Thermal Limiting Protection under Overcurrent Condition.
Undervoltage Lockout Ensures that Switch is off at Start Up.
Output can be Forced Higher than Input (Off-State).
Slow Turn ON and Fast Turn OFF.




Application

Motherboard USB Management.
USB Power Management.
Hot Plug-In Power Supplies.
Battery-Charger Circuit.
Power Distribution Switch.




Pinout

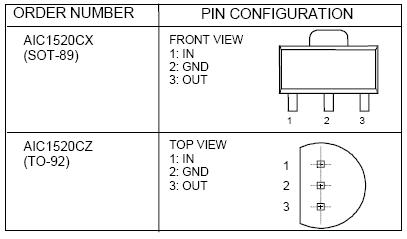

Connection Diagram

Connection Diagram




Specifications

Supply Voltage (VIN)...........................................................................................7.0V
Operating Temperature Range................................................................-40~ 85
Storage Temperature Range............................................................... -65~ 150




Description

The AIC1520 is an integrated high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.The high-side switch is a MOSFET with 120m R DS(ON) ,which meets USB voltage drop requirements for maximum transmission wire length.Output current of AIC1520 is typically limited to 1.0A, well below the 5A safety requirement, and thermal shutdown function shuts the switch off to prevent damage under overcurrent conditions.Guaranteed minimum output rise time limits inrush current during hot plug-in, minimizing EMI and preventing the voltage at upstream port from dropping excessively.
