AIC1383

Features: 􀁺 1.5A Source and Sink Current Ability􀁺 Support DDR1 (1.25VTT) and DDR2 (0.9VTT) Requirements􀁺 Low Output Voltage Offset, ±20mV􀁺 High Accuracy Output Voltage at Full-Load􀁺 Adjustable VOUT by External Resistor􀁺 Low External Component C...

product image

AIC1383 Picture
See larger image
SeekIC No. : 004278993 Detail

AIC1383: Features: 􀁺 1.5A Source and Sink Current Ability􀁺 Support DDR1 (1.25VTT) and DDR2 (0.9VTT) Requirements􀁺 Low Output Voltage Offset, ±20mV􀁺 High Accuracy Output Vo...

AIC1383 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1383
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺 1.5A Source and Sink Current Ability
􀁺 Support DDR1 (1.25VTT) and DDR2 (0.9VTT) Requirements
􀁺 Low Output Voltage Offset, ±20mV
􀁺 High Accuracy Output Voltage at Full-Load
􀁺 Adjustable VOUT by External Resistor
􀁺 Low External Component Count
􀁺 Current Limit protection
􀁺 Thermal Protection
􀁺 SOP-8 Package




Application

􀁺 Mother Board
􀁺 Graphic Cards
􀁺 DDR Termination Voltage Supply




Pinout

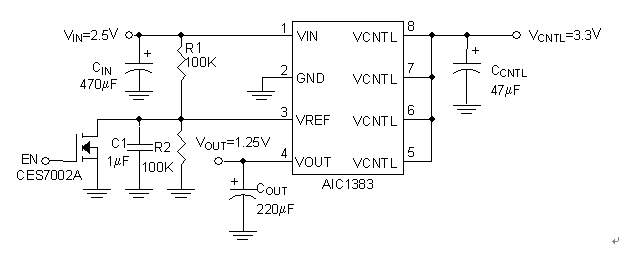

Connection Diagram

Connection Diagram




Specifications

Supply Voltage .............................................................................................-0.4V to 7V
Operating Temperature Range.................................................................. -40°C~85°C
Junction Temperature Range ...............................................................................125°C
Storage Temperature Range ..................................................................-65°C ~150°C
Lead Temperature (Solder, 10sec) ......................................................................260°C
Thermal Resistance JC SO-8 ..........................................................................40°C /W
Thermal Resistance JA SO-8 ........................................................................160°C /W
(Assume no ambient airflow, no heatsink)




Description

AIC1383 linear regulator is designed to achieve 1.5A source and sink current while regulating an output voltage to within 25mV.

AIC1383 converts voltage supplies range from 1.6V to 6V into an output voltage that adjusts by two external voltage divider resistors. It provides an excellent voltage source for active termination schemes of high-speed transmission lines as those seen in high-speed memory buses, and it meets the JEDEC SSTL-2 and SSTL-3 specifications for termination of DDR-SRAM.

Built-in current limiting in source and sink mode, with thermal shutdown provide maximal protection to the AIC1383 against fault conditions.
