Features: Guaranteed 2A Output Current.
Fast Response in Line/Load Transient.
Wide Operating Voltage Ranges: 2.3V to 5.5V.
0.01A Shutdown Standby Current .
Low Quiescent Current: 80A.
Fixed: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 3.7V, 3.8V Output Voltage.
Adjustable Output Voltage are available from 0.8~4.5V.
Low Dropout330mV at 1.5A and 2.8V output voltage, 440mV at 2A and 2.8V output voltage.
High PSRR70dB at 1kHz.
Active Low or High Shutdown Control.Current Limit and Thermal Protection.
Available in 2% Output Tolerance.
Available in SOT-223 & TO-220 (3 pin) & SOP-8 (8 pin) and TO-252 &TO-263 (3 & 5 pin) Package. Application
- Motherboards/Graphic Card.
- Set Top Boxes.
- Laptop, Palmtops, Notebook Computers.
- Personal Communication Equipment.
- Battery-Powered Equipment.
- PC Peripherals.
Pinout

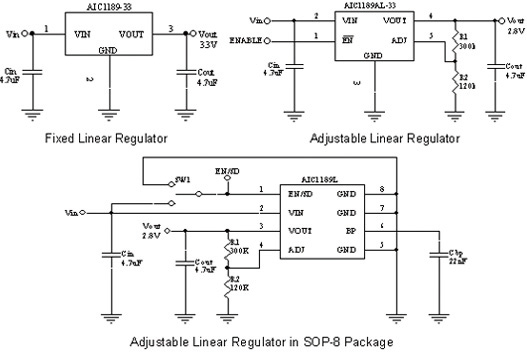

TYPICAL APPLICATION
DescriptionA low noise, high PSRR and ultra low dropout linear regulator AIC1189 is optimized for low ESR ceramic capacitors operation with 2A continuous current. The AIC1189 is designed for portable and wireless devices with demanding performance and space requirements.
The AIC1189 offers high precision output voltage of 2% tolerance. Output voltage can also be adjusted for those other than the preset values.
A noise bypass pin is available for further reduction of output noise. The bypass pin could be floating if its unnecessary. At 2A load current and 2.8V output voltage, a 440mV dropout is performed. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The high ripple rejection and low noise of the AIC1189 provide enhanced performances for critical applications such as cellular phones, and PDAs.
In addition, a logic-level shutdown input is included, which reduce supply current to 0.01gA (typ.) in shutdown mode with fast turn-on time less than 100gs. The AIC1189s current limit and thermal protection provide protection against any overload condition that would create excessive junction temperatures.
A low noise, high PSRR and ultra low dropout linear regulator AIC1189 is optimized for low ESR ceramic capacitors operation with 2A continuous current. It is designed for portable and wireless devices with demanding performance and space requirements.
The AIC1189 offers high precision output voltage of 2% tolerance. Output voltage can also be adjusted for those other than the preset values.
A noise bypass pin is available for further reduction of output noise. The bypass pin could be floating if its unnecessary. At 2A load current and 2.8V output voltage, a 440mV dropout is performed. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The high ripple rejection and low noise of the AIC1189 provide enhanced performances for critical applications such as cellular phones, and PDAs.
In addition, a logic-level shutdown input is included, which reduce supply current to 0.01A (typ.) in shutdown mode with fast turn-on time less than 100s. The AIC1189s current limit and thermal protection provide protection against any overload condition that would create excessive junction temperatures.
AIC1189 Data Sheet
