AH283

Features: On chip Hall sensor Rotor-locked shutdown Automatically restart Rotor-state detection (RD) output Buil t-in Zener protection for output driver Operating voltage: 10V~20 V, driver start up: 8V (minimum) Output current: IO(AVE) = 300 mA Package: SIP-5L, SOT89-5LPinoutSpecifications C...

product image

AH283 Picture
See larger image
SeekIC No. : 004278805 Detail

AH283: Features: On chip Hall sensor Rotor-locked shutdown Automatically restart Rotor-state detection (RD) output Buil t-in Zener protection for output driver Operating voltage: 10V~20 V, driver start up...

AH283 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AH283
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

On chip Hall sensor
Rotor-locked shutdown
Automatically restart
Rotor-state detection (RD) output
Buil t-in Zener protection for output driver
Operating voltage: 10V~20 V, driver start up: 8V (minimum)
Output current: IO(AVE) = 300 mA
Package: SIP-5L, SOT89-5L

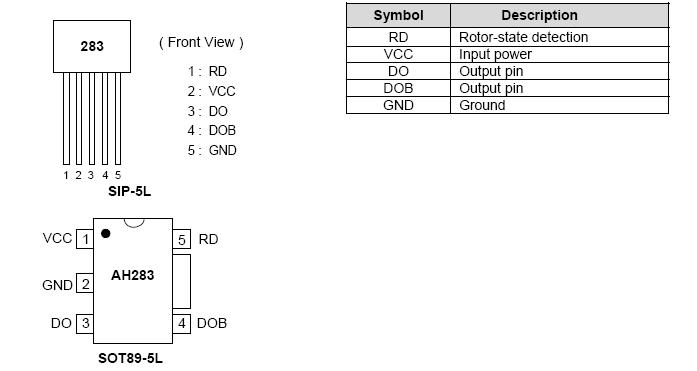

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Output Zener-breakdown Voltage
Vz
38
V
Operating Supply Voltage
Vcc
28
V
Output Current
IO(AVE)

300
mA
IO(PEAK)
400
Power Dissipation
PD
SIP5
550
mW
SOT89-5
800
Operating temperature range
Topr
-20 ~ 100
°C
Storage temperature range
Tstg
-55 ~ 150
°C
Maximum Junction Temp.
Tj
150
°C



Description

AH283 is a monolithic fan motor controller with Hall sensor's capability. It contains two complementary open-collector transistors for motor's coil driving,automatic lock current shutdown, and recovery protections. In addition, rotor-state detection (RD) output is for Rotor-state detection.

To avoid coil burning, rotor-lock shutdown detection circuit shut down the output driver if the rotor is blocked and then the automatic recovery circuit will try to restart the motor. This function of AH283 repeats while the rotor is blocked. Until the blocking is removed,the motor recovers running normally.
