Features: On chip Hall plate Built-in Zener diode protection for output driver Built-in protection diode for power reverse connecting Rotor-lock detection Automatically restart after release of motor locking Adjustable auto restart time Operating voltage: 3.5~20 V Max Output current: IO(AVE) = 50...
AH280: Features: On chip Hall plate Built-in Zener diode protection for output driver Built-in protection diode for power reverse connecting Rotor-lock detection Automatically restart after release of mot...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Characteristics |
Symbol |
Rating |
Unit | |
Operating Supply Voltage |
Vcc |
20 |
V | |
Output Current |
IO(AVE) |
500 |
mA | |
IO(PEAK) |
800 | |||
Power Dissipation |
PD |
SIP-5L/SOP-8L |
550 |
mW |
SOP-8L EP |
1000 | |||
Operating temperature range |
Topr |
-20 ~ 85 |
°C | |
Storage temperature range |
Tstg |
-55 ~ 150 |
°C | |
DO(DOB) Vceo D.C. Voltage |
Vceo |
40 |
Vdc |

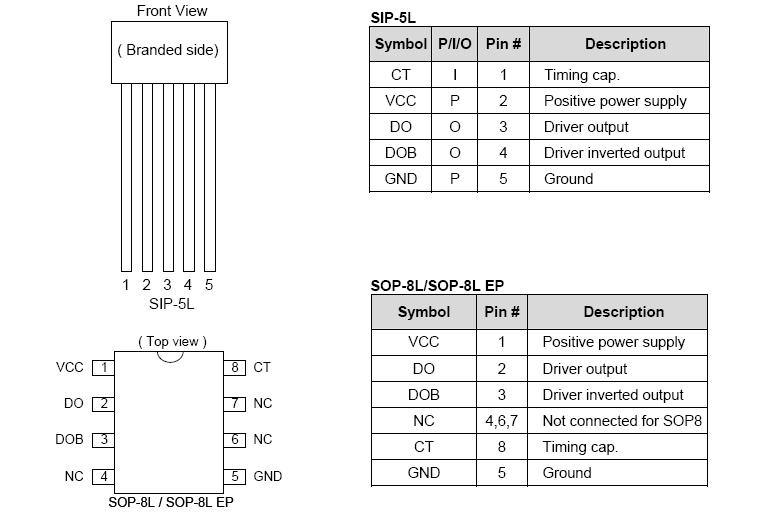

AH280 is the integrated Hall sensor owned two complementary outputs for motor's coil driving, auto locked shutdown and auto restart functions.Functional block diagram includes that a regulator with temperature-compensated band-gap, an on-chip Hall voltage generator, a comparator, a Schmitt trigger and two current output drivers. The regulator can provide wide operational voltage range. The Hall voltage generator is to amplify the Hall voltage due to Hall effect. A Schmitt trigger is to provide switching Hysteresis for noise rejection.To avoid coil burning, rotor-lock detection circuit will shutdown the output driver if detect rotor-lock status. A rotation recovery circuit is to restart the motor after rotor-lock is removed. In addition, the auto re-start time is flexible by adjusting the capacitance (CT) of AH280.
