Features:

-Low rDS(on) Provides Higher Efficiency and Extends Battery Life
-Miniature SO-8 Surface Mount Package Saves Board Space
-High power and current handling capability


Pinout

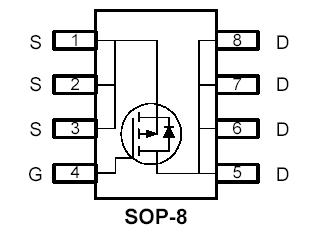

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage -20 V
VGS Gate-Source Voltage ±12 V
ID Continuous Drain Current (Note 1) TA=25ºC -13.5 A
TA=70ºC -11.6
IDM Pulsed Drain Current (Note 2) ±50 A
IS Continuous Source Current (Diode Conduction) (Note 1) -2.1 A
PD Power Dissipation (Note 1) TA=25ºC 3.1 W
TA=70ºC 2.3
TJ, TSTG Operating Junction and Storage Temperature Range -55 to 150 ºC



Description

These miniature surface mount MOSFETs utilize High Cell Density process. Low rDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications of AF4415P are PWM DC-DC converters, power management in portable and battery-powered products such as computers, printers, battery charger, telecommunication power system, and telephones power system.
