AF4409P

Features: -Low rDS(on) Provides Higher Efficiency and Extends Battery Life-Miniature SO-8 Surface Mount Package Saves Board Space-High power and current handling capabilityPinoutSpecifications Symbol Parameter Rating Units VDS Drain-Source Voltage -30 V VGS Gate-Source Voltage ±...

product image

AF4409P Picture
See larger image
SeekIC No. : 004278448 Detail

AF4409P: Features: -Low rDS(on) Provides Higher Efficiency and Extends Battery Life-Miniature SO-8 Surface Mount Package Saves Board Space-High power and current handling capabilityPinoutSpecifications ...

AF4409P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AF4409P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

-Low rDS(on) Provides Higher Efficiency and Extends Battery Life
-Miniature SO-8 Surface Mount Package Saves Board Space
-High power and current handling capability


Pinout

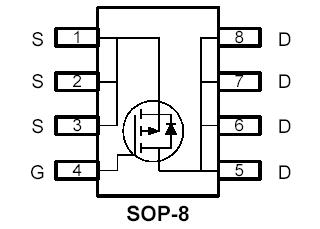

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage -30 V
VGS Gate-Source Voltage ±12 V
ID Continuous Drain Current (Note 1) TA=25ºC 10 A
TA=70ºC 8.2
IDM Pulsed Drain Current (Note 2) ±50 A
IS Continuous Source Current (Diode Conduction) (Note 1) -2.1 A
PD Power Dissipation (Note 1) TA=25ºC 3.1 W
TA=70ºC 2
TJ, TSTG Operating Junction and Storage Temperature Range -55 to 150 ºC



Description

These miniature surface mount MOSFETs utilize High Cell Density process. Low rDS(on) assures minimal power loss and conserves energy, making AF4409P ideal for use in power management circuitry. Typical applications of AF4409P are PWM DC-DC converters, power management in portable and battery-powered products such as computers, printers, battery charger, telecommunication power system, and telephones power system.
