Mounting Type: Surface Mount
Packaging: Tray
Voltage - I/O: 3.30V
On-Chip RAM: 256kB
Package / Case: 144-LQFP
Supplier Device Package: 144-LQFP (20x20)
Clock Rate: 200MHz
Voltage - Core: 1.20V
Type: Floating Point
Operating Temperature: 0°C ~ 70°C
Manufacturer: Analog Devices Inc
Series: SHARC®
Non-Volatile Memory: ROM (512 kB)
Interface: DAI, SPI

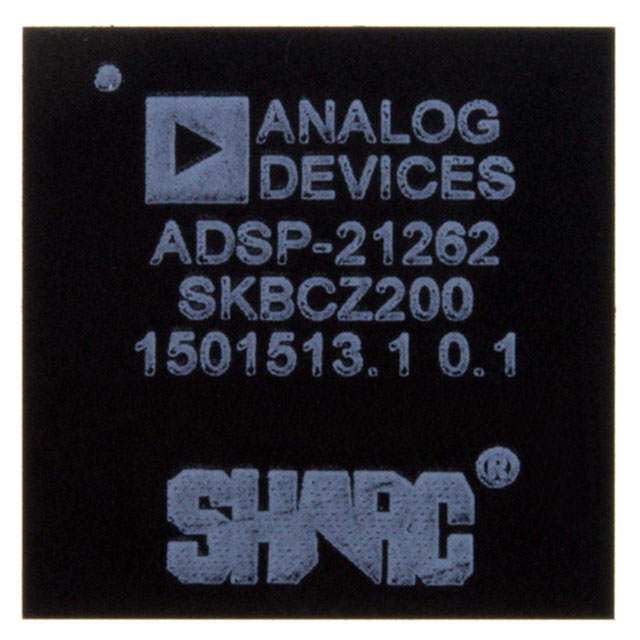

DescriptionThe ADSP-21262SKSTZ200 is one member of the ADSP-21262 family which is designed as the high performance 32-bit/40-bit floating-point processor that is available with a 200 MHz core instruction rate. And this device can be used in high precision signal processing applications.
Features of the ADSP-21262SKSTZ200 are:(1)400 MMACS sustained performance at 200 MHz;(2)4M bits on-chip dual-ported mask-programmable ROM;(3)Dual data address generators (DAGs) with modulo and bitreverse addressing;(4)Zero-overhead looping with single-cycle loop setup, providing efficient program sequencing;(5)Accelerated FFT butterfly computation through a multiply with add and subtract instruction;(6)Master-slave mode multimaster support;(7)JTAG background telemetry for enhanced emulation features;(8)Available in 136-ball BGA and 144-lead LQFP packages and lead free packages.
The absolute maximum ratings of the ADSP-21262SKSTZ200 can be summarized as:(1)Internal (Core) Supply Voltage: -0.3 V to +1.4 V;(2)Analog (PLL) Supply Voltage (AVDD): -0.3 V to +1.4 V;(3)External (I/O) Supply Voltage (VDDEXT): -0.3 V to +3.8 V;(4)Input Voltage0.5 V to VDDEXT: 0.5 V;(5)Output Voltage Swing0.5 V to VDDEXT: 0.5 V;(6)Load Capacitance: 200 pF;(7)Storage Temperature Range: -65°C to +150°C;(8)Junction Temperature under Bias: 125°C. If you want to know more information about ADSP-21262SKSTZ200, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Parameters: | Technical/Catalog Information | ADSP-21262SKSTZ200 |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Package / Case | 144-LQFP |
| Packaging | Tray |
| Type | Fixed/Floating Point |
| Non-Volatile Memory | ROM (512 kB) |
| On-Chip RAM | 256kB |
| Interface | DAI, SPI |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Clock Rate | 200MHz |
| Operating Temperature | 0°C ~ 70°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ADSP 21262SKSTZ200
ADSP21262SKSTZ200
|
