ADF4002

Features: ·400 MHz bandwidth·2.7 V to 3.3 V power supply·Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems·Programmable charge pump currents·3-wire serial interface·Analog and digital lock detect·Hardware and software power-down mode·200 MHz phase detectorApplication·C...

product image

ADF4002 Picture
See larger image
SeekIC No. : 004274621 Detail

ADF4002: Features: ·400 MHz bandwidth·2.7 V to 3.3 V power supply·Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems·Programmable charge pump currents·3-wire serial interface·Anal...

ADF4002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADF4002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·400 MHz bandwidth
·2.7 V to 3.3 V power supply
·Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems
·Programmable charge pump currents
·3-wire serial interface
·Analog and digital lock detect
·Hardware and software power-down mode
·200 MHz phase detector




Application

·Clock conditioning
·Clock generation
·IF LO generation




Pinout

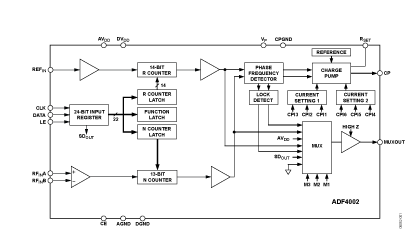

ADF4002 Diagram

Connection Diagram




Specifications

Type Single Integer-N
Max RF Input (MHz) 400MHz
Norm Phase Noise (dBc/Hz) -222dBc
Max REFin (MHz) 300MHz
RF Prescalers n/a
Supply Current 5mA
Package 16-Lead TSSOP,20-Lead CSP


Parameter Rating
AVDD to GND1 0.3 V to +3.6 V
AVDD to DVDD 0.3 V to +0.3 V
VP to GND 0.3 V to +5.8 V
VP to AVDD 0.3 V to +5.8 V
Digital I/O Voltage to GND 0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND 0.3 V to VP + 0.3 V
REFIN, RFINA, RFINB to GND 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version)		 40°C to +85°C
Storage Temperature Range 65°C to +125°C
Maximum Junction Temperature 150°C
Lead Temperature, Soldering
Vapor Phase (60 sec)
Infrared (15 sec)		 215°C
220°C
Transistor Count
CMOS		 6425
Bipolar 303
1 GND = AGND = DGND = 0 V




Description

The ADF4002 frequency synthesizer is used to implement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. ADF4002 consists of a low-noise digital phase frequency detector (PFD), a precision charge pump, a programmable reference divider, and programmable N divider. The 14-bit reference counter (R counter), allows selectable REFIN frequencies at the PFD input. A complete phase-locked loop (PLL) can be implemented if the synthesizer is used with an external loop filter and voltage controlled oscillator (VCO). In addition, by programming R and N to 1, the part can be used as a stand alone PFD and charge pump.
