AD9883A

Industrial Temperature Range Operation140 MSPS Maximum Conversion Rate 300 MHz Analog Bandwidth 0.5 V to 1.0 V Analog Input Range 500 ps p-p PLL Clock Jitter at 110 MSPS 3.3 V Power Supply Full Sync Processing nSync Detect for Hot Plugging Midscale Clamping Power-Down Mode Low Power: 500 mW Typical 4:2:2 Output Format Mode

VD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6 V
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6 V
Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . .VD to 0.0 V
VREF IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VD to 0.0 V
Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . ..5 V to 0.0 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . ...20 mA
Operating Temperature . . . . . . . . . . . . . . . ..40°C to +85
Storage Temperature . . . . . . . . . . . . . . . .65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . . .150°C
Maximum Case Temperature . . . . . . . . . . . . . . . . . . . . 150°C
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions outside of those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.

The AD9883A is a complete 8-bit, 140 MSPS, monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power analog bandwidth of 300 MHz supports resolutions up to SXGA (1280 * 1024 at 75 Hz).

The AD9883A includes a 140 MHz triple ADC with internal 1.25 V reference, a PLL, and programmable gain, offset, and clamp control. The user provides only a 3.3 V power supply, analog input, and Hsync and COAST signals. Three-state CMOS outputs may be powered from 2.5 V to 3.3 V.

The AD9883A's on-chip PLL generates a pixel clock from the Hsync input. Pixel clock output frequencies range from 12 MHz to 140 MHz. PLL clock jitter is 500 ps p-p typical at 140 MSPS.
When the COAST signal is presented, the PLL maintains its output frequency in the absence of Hsync. A sampling phase adjustment is provided. Data, Hsync, and clock output phase relationships are maintained. The AD9883A also offers full sync processing for composite sync and sync-on-green applications.

A clamp signal is generated internally or may be provided by the user through the CLAMP input pin. This interface is fully programmable via a 2-wire serial interface.

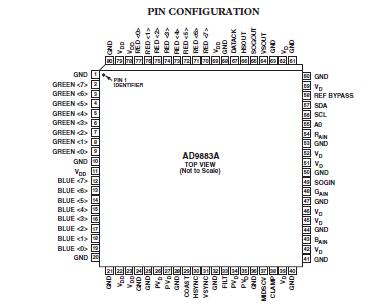

Fabricated in an advanced CMOS process, the AD9883A is provided in a space-saving 80-lead LQFP surface-mount plastic package and is specified over the 40°C to +85°C temperature range.
