Product Details

Description



Features:

10-Bit, 18 MSPS A/D Converter
18 MSPS Full-Speed CDS
Low Noise, Wideband PGA
Internal Voltage Reference
No Missing Codes Guaranteed
+3 V Single Supply Operation
Low Power CMOS: 185 mW
48-Pin TQFP Package

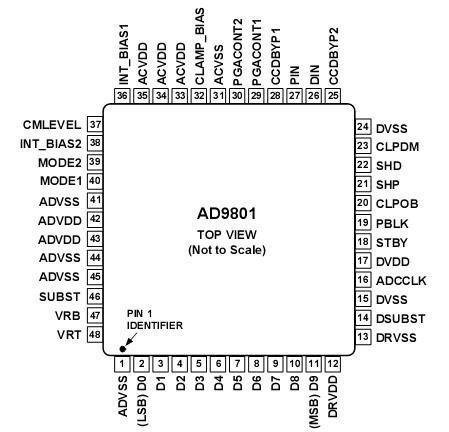

Pinout

Connection Diagram


Specifications

Parameter With Respect To Min Max Units
ADVDD
ACVDD
DVDD
DRVDD
SHP, SHD
ADCCLK, CLOB, CLPDM
PGACONT1, PGACONT2
PIN, DIN
DOUT
VRT, VRB
CLAMP_BIAS
CCDBYP1, CCDBYP2
STBY
MODE1, MODE2
DRVSS, DVSS, ACVSS, ADVSS
Junction Temperature
Storage Temperature
Lead Temperature (10 sec)		 ADVSS, SUBST
ACVSS, SUBST
DVSS, DSUBST
DRVSS, DSUBST
DSUBST
DSUBST
SUBST
SUBST
DSUBST
SUBST
SUBST
SUBST
DSUBST
SUBST
SUBST, DSUBST

0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3

65

 6.5
6.5
6.5
6.5
DVDD + 2.0
DVDD + 0.3
ACVDD + 0.3
ACVDD + 0.3
DRVDD + 0.3
ADVDD + 0.3
ACVDD + 0.3
ACVDD + 0.3
DVDD + 0.3
ADVDD + 0.3
+0.3
+150
+150
+300		 V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
°C
°C
°C



Description

The AD9801 is a complete CCD signal processor developed for electronic cameras. It is well suited for both video conferencing and consumer level still camera applications.

The signal processing chain is comprised of a high speed CDS, variable gain PGA and 10-bit ADC. Required clamping circuitry and an onboard voltage reference are also provided.The AD9801 operates from a single +3 V supply with a typical power consumption  of 185 mW. The AD9801 is packaged in a space saving 48-pin thin-quad flatpack (TQFP) and is specified over an operating temperature range of 0°C to +70°C.
