Features: Low Cost 3.3 V-CMOS Mixed-Signal Front End (MxFE(TM))
Converter for Broadband Modems
10-/12-Bit D/A Converter (TxDAC+ )(R)
64/32 MSPS Input Word Rate
2/4 Interpolating LPF or BPF Transmit Filter
128 MSPS DAC Output Update Rate
Wide (26 MHz) Transmit Bandwidth
Power-Down Mode
10-/12-Bit, 50 MSPS A/D Converter
Fourth Order Low-Pass Filter 12 MHz or 26 MHz
with Bypass
6 dB to +36 dB Programmable Gain Amplifier
Internal Clock Multiplier (PLL)
Clock Outputs
Voltage Regulator Controller
48-Lead LQFP PackageApplicationPowerline Networking
Home Phone Networking
xDSL
Broadband Wireless

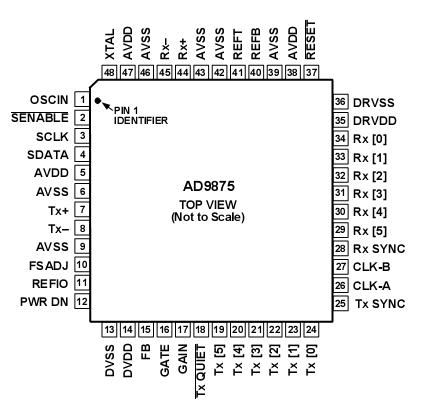

Home RFPinout
SpecificationsPower Supply (VS) . . . . . . . . . . . . . . . . . . . . . . . . . . .3.9 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . 5 mA
Digital Inputs . . . . . . . . . . . . . . . . 0.3 V to DRVDD 0.3 V
Analog Inputs . . . . . . . . . . . . . . . . .0.3 V to AVDD 0.3 V
Operating Temperature . . . . . . . . . . . .40°C to +85°C
Maximum Junction Temperature . . . . . . . . . . . . . . 150°C
Storage Temperature . . . . . . . . . . . . .65°C to +150°C
Lead Temperature (Soldering 10 sec) . . . . . . . . . .300°CDescriptionThe AD9875 is a single supply Broadband modem mixed-signal front end (MxFE) IC. The devices contain a transmit path Interpolation Filter and DAC, and a receive path PGA,LPF and ADC supporting a variety of Broadband modem applications. Also on-chip is a PLL clock multiplier that pro-vides all required clocks from a single crystal or clock input.The AD9875 provides 10-bit converter performance on both the Tx and Rx paths.
The AD9875 TxDAC+ uses a selectable digital 2* or 4* interpolation low-pass or band-pass filter to further oversample transmit data and reduce the complexity of analog reconstruction filtering.The transmit path signal bandwidth can be as high as 26 MHz at an input data rate of 64 MSPS. The 10-bit DAC provides
differential current outputs for optimum noise and distortion performance. The DAC full-scale current can be adjusted from 2 mA to 20 mA by a single resistor, providing 20dB of additional gain range.
The receive path of AD9875 consists of a PGA, LPF, and ADC. The two-stage PGA has a gain range of 6 dB to +36 dB, and is programmable in 2 dB steps, adding 42 dB of dynamic range to the receive path.
The AD9875 receive path LPF cutoff frequency can be programmed to either 12 MHz or 26 MHz. The filter cutoff frequency can also be tuned or bypassed where filter requirements differ. The 10-bit ADC uses a multistage differential pipeline architecture to achieve excellent dynamic performance with low power consumption.
The AD9875 provides a voltage regulator controller (VRC) that can be used with an external power MOSFET transistor to form a cost-effective 1.3 V linear regulator.
The AD9875 digital transmit and receive ports are each multiplexed to a bus width of 5/6 bits and are clocked at a frequency of twice the 10-bit word rate.
The AD9875 ADC and/or DAC can also be used at higher sampling rates as high as 64 MSPS in a 5-bit resolution non-multiplexed mode. The AD9875 is pin-compatible with the 12-bit AD9876. Both are available in a space-saving 48-lead LQFP package. They are speci- fied over the industrial (40°C to +85°C) temperature range.
AD9875 Data Sheet
