AD9848

Features: AD9848: 10-Bit, 20 MHz VersionAD9849: 12-Bit, 30 MHz VersionCorrelated Double Sampler (CDS)2 dB to +10 dB Pixel Gain Amplifier (PxGA )(R)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)10-Bit 20 MHz A/D Converter (AD9848)12-Bit 30 MHz A/D Converter (AD9849)Black Level Clamp with Variab...

product image

AD9848 Picture
See larger image
SeekIC No. : 004273542 Detail

AD9848: Features: AD9848: 10-Bit, 20 MHz VersionAD9849: 12-Bit, 30 MHz VersionCorrelated Double Sampler (CDS)2 dB to +10 dB Pixel Gain Amplifier (PxGA )(R)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)1...

AD9848 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9848
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

AD9848: 10-Bit, 20 MHz Version
AD9849: 12-Bit, 30 MHz Version
Correlated Double Sampler (CDS)
2 dB to +10 dB Pixel Gain Amplifier (PxGA )(R)
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
10-Bit 20 MHz A/D Converter (AD9848)
12-Bit 30 MHz A/D Converter (AD9849)
Black Level Clamp with Variable Level Control
Complete On-Chip Timing Driver
Precision Timing(TM) Core with 1 ns Resolution @ 20 MSP
On-Chip 3 V Horizontal and RG Drivers (AD9848)
On-Chip 5 V Horizontal and RG Drivers (AD9849)
48-Lead LQFP Package


Application

Digital Still Cameras


Pinout

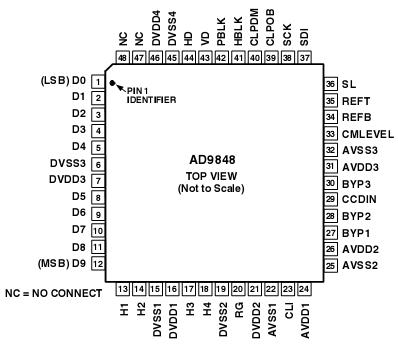

Connection Diagram


Specifications


Parameter
 With RespectTo Min Max Unit
AVDD1, 2, 3
DVDD1, DVDD2 (AD9848)
DVDD1, DVDD2 (AD9849)
DVDD3, 4
Digital Outputs
CLPOB, CLPDM, BLK
CLI
SCK, SL, SDATA
VRT, VRB
BYP1 3, CCDIN
Junction Temperature
Lead Temperature (10 sec)		 AVSS
DVSS
DVSS
DVSS
DVSS3
DVSS4
AVSS
DVSS4
AVSS
AVSS

0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3

 +3.9
+3.9
+5.5
+3.9
DVDD3 + 0.3
DVDD4 + 0.3
AVDD + 0.3
DVDD4 + 0.3
AVDD + 0.3
AVDD + 0.3
150
300		 V
V
V
V
V
V
V
V
V
V
°C
°C



Description

The AD9848 and AD9849 are highly integrated CCD signal pro-cessors for digital still camera applications. Both include a complete analog front end with A/D conversion, combined with a program-mable timing driver. The Precision Timing core allows adjustment of high speed clocks with approximately 1 ns resolution.

The AD9848 is specified at pixel rates of 20 MHz, and the AD9849 is specified at 30 MHz. The analog front end includes black level clamping, CDS, PxGA, VGA, and a 10- or 12-bit A/D converter. The timing driver provides the high-speed CCD clock drivers for RG and H1-H4. Operation is programmed using a 3-wire serial interface. Packaged in a space-saving 48-lead LQFP, the AD9848 and AD9849 are specified over an operating temperature range of 20°C to +85°C.
