Features: Ultralow noise: 0.95 nV/Hz, 2.6 pA/Hz
Ultralow distortion
2nd harmonic RL = 1 k , G = +2
−92 dB @ 10 MHz
3rd harmonic RL = 1 k , G = +2
−105 dB @ 10 MHz
High speed
GBWP: 3.8 GHz
3 dB bandwidth:
700 MHz (G = +2)
550 MHz (G = +10)
Slew rate:
475 V/s (G = +2)
1350 V/s (G = +10)
New pinout
Custom external compensation, gain range 1, +2 to +10
Supply current: 15 mA
Offset voltage: 0.5 mV max
Wide supply voltage range: 5 V to 12 VApplicationPre-amplifiers
Receivers
Instrumentation
Filters
IF and baseband amplifiers
A-to-D drivers
DAC buffers

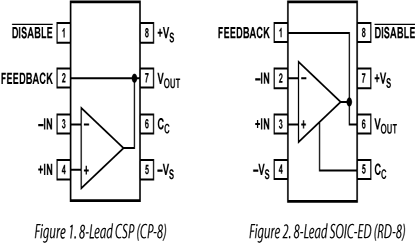

Optical electronicsPinout
Specifications
| -3dB Bandwidth |
500MHz |
| Slew Rate |
1600V/s |
| Vos |
200V |
| Ib |
3A |
| Input Noise (nV/rtHz) |
0.95nV/rtHz |
| Vcc-Vee Supply (V) |
5 to 12 |
| Iq per Amplifier |
16mA |
| # OpAmps per Pkg |
1 |
| Operating Temp Range |
-40 to +125 |
| Packages |
CSP,SOIC |
Parameter Rating
Supply Voltage 12.6 V
Power DissipationSee Figure 4
Differential Input Voltage ±1.8 V
Differential Input Current ±10mA
Storage Temperature 65°C to +125°C
Operating Temperature Range40°C to +125°C
Lead Temperature Range (Soldering 10 sec) 300°C
Junction Temperature 150°C
DescriptionThe AD8099 is an ultralow noise (0.95 nV/Hz) and distortion (92 dBc @10 MHz) voltage feedback op amp, the combination of which make it ideal for 16- and 18-bit systems. The AD8099 features a new, highly linear, low noise input stage that increases the full power bandwidth (FPBW) at low gains with high slew rates. ADI's proprietary next generation XFCB process enables such high performance amplifiers with relatively low power.
The AD8099 features external compensation, which lets the user set the gain bandwidth product. External compensation allows gains from +2 to +10 with minimal trade-off in band-width. The AD8099 also features an extremely high slew rate of 1350 V/s, giving the designer flexibility to use the entire dynamic range without trading off bandwidth or distortion. The AD8099 settles to 0.1% in 18 ns and recovers from overdrive in 50 ns.
The AD8099 drives 100 loads at breakthrough performance levels with only 15 mA of supply current. With the wide supply voltage range (5 V to 12 V), low offset voltage (0.1 mV typ), wide bandwidth (700 MHz for G = +2), and a GBWP up to 3.8 GHz, the AD8099 is designed to work in a wide variety of applications.
The AD8099 is available in a 3 mm * 3 mm lead frame chip scale package (LFCSP) with a new pinout that is specifically optimized for high performance, high speed amplifiers. The new LFCSP package and pinout enable the breakthrough performance that previously was not achievable with amplifiers. The AD8099 is rated to work over the extended industrial temperature range, −40°C to +125°C.
