AD8075

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.0 V
Internal Power Dissipation ^2,3

AD8074/AD8075 16-Lead TSSOP (RU) . . . . . . . . . . . 1 W
Input Voltage
IN0, IN1, IN2 . . . . . . . . . .. . . . . . . . . VEE VIN VCC
OE . . . . . . . . . . . . . . . . . . . . . . . . . . DGND VIN VCC
Output Short Circuit Duration . . . . . . . . . . . . . . . Indefinite³
Storage Temperature Range . . . . . . .. . 65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . .. . . . . 300°C

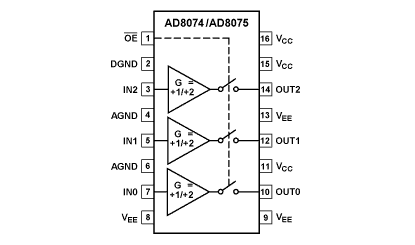

The AD8074/AD8075 are high-speed triple video buffers with G = +1 and +2 respectively. They have a 3 dB full signal band width in excess of 450 MHz, along with slew rates in excess of 1400 V/s. With better than 80dB of all hostile crosstalk and 90 dB isolation, they are useful in many high-speed applica-
tions. The differential gain and differential phase error are 0.01% and 0.01°. Gain flatness of 0.1 dB up to 50 MHz makes the AD8074/AD8075 ideal for RGB buffering or driving. They consume less than 30 mA on a ±5 V supply.

Both devices offer a high-speed disable feature that allows the outputs to be put into a high impedance state. This allows the building of larger input arrays while minimizing "OFF" channel output loading. The AD8074/AD8075 are offered in a 16-lead TSSOP package.
