Features:

*Dual Supply 5 V
*High-Speed Fully Buffered Inputs and Outputs
600 MHz Bandwidth (3 dB) 200 mV p-p
500 MHz Bandwidth (3 dB) 2 V p-p
1600 V/s Slew Rate, G = +1
1350 V/s Slew Rate, G = +2
*Fast Settling Time: 4 ns
*Low Supply Current: <30 mA
*Excellent Video Specifications (RL = 150 ):
Gain Flatness of 0.1 dB to 50 MHz
0.01% Differential Gain Error
0.01 Differential Phase Error
*"All Hostile" Crosstalk
80 dB @ 10 MHz
50 dB @ 100 MHz
*High "OFF" Isolation of 90 dB @ 10 MHz
Low Cost
*Fast Output Disable Feature




Application

RGB Buffer in LCD and Plasma Displays
RGB Driver
Video Routers




Pinout

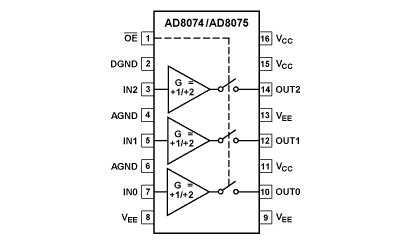

AD8074 Diagram




Specifications

V or I Feedback Voltage
Min Stable Acl 1V/V
Packages SOP
Rail-Rail Out No
Slew Rate 1.6kV/s
-3dB Bandwidth 600MHz
Supply Current 30mA
THD (-dB) 80dB
Type Buffer/Fixed Gain,Video
Vcc-Vee 9Vto11V
Input Noise (nV/rtHz) 19.5nV/rtHz





Description

The AD8074/AD8075 are high-speed triple video buffers with G = +1 and +2 respectively. They have a 3 dB full signal band width in excess of 450 MHz, along with slew rates in excess of 1400 V/s. With better than 80dB of all hostile crosstalk and 90 dB isolation, they are useful in many high-speed applica-
tions. The differential gain and differential phase error are 0.01% and 0.01°. Gain flatness of 0.1 dB up to 50 MHz makes the AD8074/AD8075 ideal for RGB buffering or driving. They consume less than 30 mA on a ±5 V supply.

Both devices offer a high-speed disable feature that allows the outputs to be put into a high impedance state. This allows the building of larger input arrays while minimizing "OFF" channel output loading. The AD8074/AD8075 are offered in a 16-lead TSSOP package.
