Series: -
Amplifier Type: -
Number of Circuits: 3
Gain Bandwidth Product: -
Current - Input Bias: -
Voltage - Input Offset: -
Mounting Type: Surface Mount
Operating Temperature: -
Packaging: Tape & Reel (TR)Alternate Packaging
Output Type: -
Voltage - Supply, Single/Dual (±): 5 V ~ 12 V, ±2.5 V ~ 6 V
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Manufacturer: Analog Devices Inc
-3db Bandwidth: 100MHz
Applications: Current Feedback
Slew Rate: 500 V/µs
Current - Supply: 3.5mA
Current - Output / Channel: 30mA
Supplier Device Package: 14-SOICN
Pinout

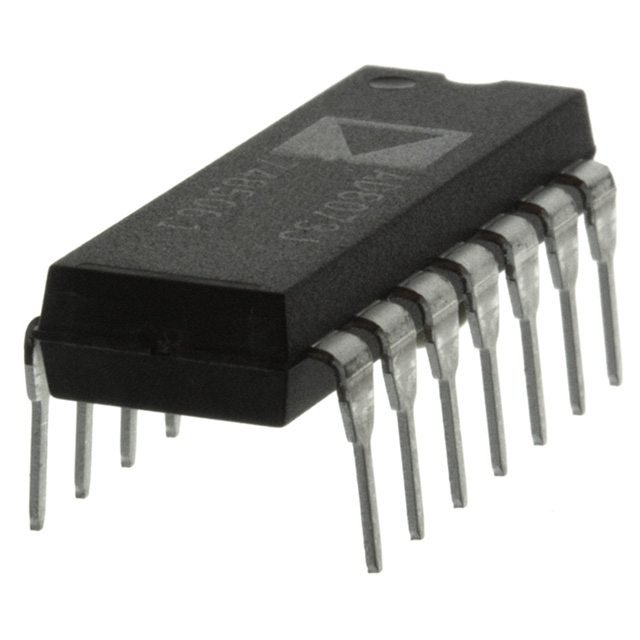

DescriptionThe AD8073JRZ-REEL belongs to the AD8073 series. It is a kind of low cost,current feedback amplifier intended for high volume,cost sensitive,video liner driver,computer video plug-in boards and RGB or S-video amplifier in component systems applications. It provides 30 mA of output current per amplifier,and are optimized for driving one back terminated video load (150 ) each. It is available in 14-lead plastic DIP and
SOIC packages.
There are some features of AD8073JRZ-REEL as follows. (1) very low cost; (2) good video specifications; (3): low power which is 3.5 mA per amplifier; (4) high speed and fast setting time; (5) easy to use.
What comes next is the description about absolute maximum ratings of AD8073JRZ-REEL. (1): supply voltage is 13.2 V; (2): input voltage is from VS- to VS+; (3): differential input voltage is ±1.25 V; (4): storage temperature range is -65 to 125 ; (5): operating temperature range is -40 to 125 ; (6): lead temperature range(soldering,10 sec) is 300 ; (7): internal power dissipation is 1.0 Watts. Then is some electrical characters at VS is 5.0 V and TA is 25 . (1): the typical transimpedance is 0.25 M; (2): the typical input offset voltage is 1.5 mV and the maximum is 4 mV; (3): the minimum output voltage swing is from 1.5 V to 3.5 V and the typical is from 1.3 V to 3.7 V; (4): the typical output current is 20 mA when RL is 10; (5): the typical short circuit current is 60 mA when RL is 10 ; (6): the typical power supply operating range is from ±2.5 to ±6 V at the condition of VS is from 4 V to 6 V.
Parameters: | Technical/Catalog Information | AD8073JRZ-REEL |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Applications | Current Feedback |
| -3db Bandwidth | 100MHz |
| Slew Rate | 500 V/s |
| Number of Circuits | 3 - Triple |
| Current - Supply | 3.5mA |
| Current - Output / Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 5 V ~ 12 V, ±2.5 V ~ 6 V |
| Output Type | - |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AD8073JRZ REEL
AD8073JRZREEL
|
AD8073JRZ-REEL Data Sheet
