Features: Low Cost Single (AD8055) and Dual (AD8056)
Easy to Use Voltage Feedback Architecture
High Speed
300 MHz, 3 dB Bandwidth (G = +1)
1400V/s Slew Rate
20 ns Settling to 0.1%Low Distortion: 72 dBc @ 10 MHz
Low Noise: 6 nV/Hz
Low DC Errors: 5 mV Max VOS, 1.2A,max IB
Small Packaging
AD8055 Available in SOT-23-5
AD8056 Available in 8-Lead microSOIC
Excellent Video Specifications (RL= 150 G=+2)
ApplicationImaging
Photodiode Preamp
Video Line Driver
Differential Line Driver
Professional Cameras
Video Switchers
Special Effects
A-to-D Driver

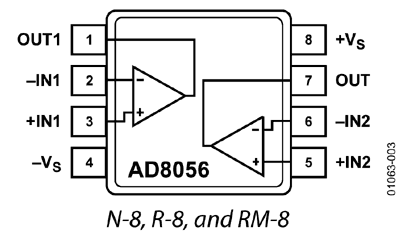

Active FiltersPinout
SpecificationsSupplyVoltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . 13.2V
InternalPowerDissipation2
PlasticDIP Package (N) . . . . . . . . . . . . . . . . . . ......... . . . 1.3W
SmallOutlinePackage (R) . . . . . . . . . . . . . . . . . . ........ . . 0.8W
SOT-23-5 Package (RT) . . . . . . . . . . . . . . . . . . . ....... . . 0.5 W
microSOIC Package (RM) . . . . . . . . . . . . . . . . . . . ....... . 0.6 W
Input Voltage (Common Mode) . . . . . . . . . . . . ..... . . . . . . ±VS
DifferentialInputVoltage . . . . . . . . . . . . . ....... . . . . . . . .±2.5V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . ... .Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . ... 40°C to +85°C
Lead Temperature Range (Soldering10sec) . . . . ... . . +300°CDescriptionThe AD8055 (single) and AD8056 (dual) voltage feedback amplifiers offer bandwidth and slew rate typically found in cur- rent feedback amplifiers. Additionally, these amplifiers are easy
to use and available at a very low cost.
Despite their low cost, the AD8055 and AD8056 provide excel- lent overall performance. For video applications, their differen- tial gain and phase error are 0.01% and 0.02 °into a 150 Ωload,and 0.02% and 0.1°while driving four video loads (37.5 Ω).Their 0.1 dB flatness out to 40 MHz, wide bandwidth out to300 MHz, along with 1400 V/µ s slew rate and 20ns settling time, make them useful for a variety of high speed applications.
The AD8055 and AD8056 require only 5mA typ/amplifier of supply current and operate on dual ± 5 V or single +12 V power supply, while being capable of delivering over 60 mA of load current. All this is offered in a small 8-lead plastic DIP, 8-lead SOIC packages, 5-lead SOT-23-5 package (AD8055) and an 8-lead microSOIC package (AD8056). These features make the AD
8055/AD8056 ideal for portable and battery powered applications where size and power are cri tical. These amplifiersare available in the industrial temperature range of 40°C to +85°C.
