Features: Low Cost Single (AD8055) and Dual (AD8056)Easy to Use Voltage Feedback ArchitectureHigh Speed300 MHz, 3 dB Bandwidth (G = +1)1400V/s Slew Rate 20 ns Settling to 0.1%Low Distortion: 72 dBc @ 10 MHzLow Noise: 6 nV/Hz Low DC Errors: 5 mV Max VOS, 1.2A,max IB Small PackagingAD8055 Availab...
AD8055: Features: Low Cost Single (AD8055) and Dual (AD8056)Easy to Use Voltage Feedback ArchitectureHigh Speed300 MHz, 3 dB Bandwidth (G = +1)1400V/s Slew Rate 20 ns Settling to 0.1%Low Distortion: 72 dBc...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Low Cost Single (AD8055) and Dual (AD8056)
Easy to Use Voltage Feedback Architecture
High Speed
300 MHz, 3 dB Bandwidth (G = +1)
1400V/s Slew Rate
20 ns Settling to 0.1%Low Distortion: 72 dBc @ 10 MHz
Low Noise: 6 nV/Hz
Low DC Errors: 5 mV Max VOS, 1.2A,max IB

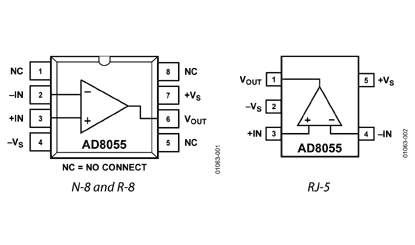

Small Packaging
AD8055 Available in SOT-23-5
AD8056 Available in 8-Lead microSOIC
Excellent Video Specifications (RL= 150 G=+2)
-3dB Bandwidth | 300MHz |
Slew Rate | 1.4kV/s |
Vos | 3mV |
Ib | 400nA |
Input Noise (nV/rtHz) | 6nV/rtHz |
Vcc-Vee Supply (V) | 8 to 12 |
Iq per Amplifier | 6.5mA |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +85 |
Packages | DIP,SOIC,SOT |
The AD8055 (single) and AD8056 (dual) voltage feedback amplifiers offer bandwidth and slew rate typically found in cur- rent feedback amplifiers. Additionally, these amplifiers are easy
to use and available at a very low cost.
Despite their low cost, the AD8055 and AD8056 provide excel- lent overall performance. For video applications, their differen- tial gain and phase error are 0.01% and 0.02 °into a 150 Ωload,and 0.02% and 0.1°while driving four video loads (37.5 Ω).Their 0.1 dB flatness out to 40 MHz, wide bandwidth out to300 MHz, along with 1400 V/µ s slew rate and 20ns settling time, make them useful for a variety of high speed applications.
The AD8055 and AD8056 require only 5mA typ/amplifier of supply current and operate on dual ± 5 V or single +12 V power supply, while being capable of delivering over 60 mA of load current. All this is offered in a small 8-lead plastic DIP, 8-lead SOIC packages, 5-lead SOT-23-5 package (AD8055) and an 8-lead microSOIC package (AD8056). These features make the AD
8055/AD8056 ideal for portable and battery powered applications where size and power are cri tical. These amplifiersare available in the industrial temperature range of 40°C to +85°C.
