Features: Fully Specified for +3 V, +5 V, and 65 V Supplies Output Swings Rail to Rail Input Voltage Range Extends 200 mV Below Ground No Phase Reversal with Inputs 1 V Beyond Supplies Disable/Power-Down Capability Low Power of 5.2 mA (26 mW on +5 V) High Speed and Fast Settling on +5 V:160 MHz 3...
AD8041: Features: Fully Specified for +3 V, +5 V, and 65 V Supplies Output Swings Rail to Rail Input Voltage Range Extends 200 mV Below Ground No Phase Reversal with Inputs 1 V Beyond Supplies Disable/Powe...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The AD8041 is a low power voltage feedback, high speed amplifier designed to operate on +3 V, +5 V or ±5 V upplies. It has true single supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.The output voltage swing extends to within 50 mV of each rail,providing the maximum output dynamic range. Additionally, it features gain flatness of 0.1 dB to 30 MHz while offering differential gain and phase error of 0.03% and 0.03° on a single +5 V supply. This makes the AD8041 ideal for professional video electronics such as cameras, video switchers or any high speed portable equipment.

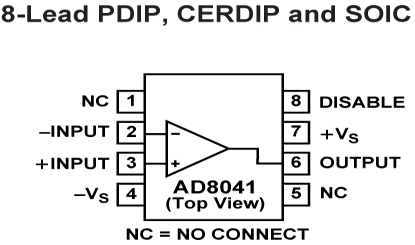

The AD8041's low distortion and fast settling make it ideal for buffering high speed A-to-D converters.The AD8041 has a high speed disable feature useful for multiplexing or for reducing power consumption (1.5 mA). The disable logic interface is compatible with CMOS or open-collectorlogic. The AD8041 offers low power supply current of 5.8 mA max and can run on a single +3 V power supply. These features are ideally suited for portable and battery powered applications where size and power are critical.The wide bandwidth of 160 MHz along with 160 V/ms of slew rate on a single +5 V supply make the AD8041 useful in many general purpose high speed applications where dual power supplies of up to ±6 V and single supplies from +3 V to +12 V are needed. The AD8041 is available in 8-pin plastic DIP and SOIC over the industrial temperature range of 40°C to +85°C.
