Low Power
1 mA Supply Current/Amp
High Speed
350 MHz, 3 dB Bandwidth (G = +1)
425 V/s Slew Rate
Low Cost
Low Noise
8 nV/HZ @ 100 kHz
600 fA/HZ @ 100 kHz
Low Input Bias Current: 750 nA Max
Low Distortion
90 dB SFDR @ 1 MHz
65 dB SFDR @ 5 MHz
Wide Supply Range: 3 V to 12 V

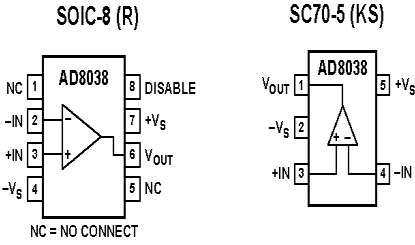

Small Packaging: SOT23-8, SC70-5, and SOIC-8
-3dB Bandwidth | 350MHz |
Slew Rate | 425V/s |
Vos | 500V |
Ib | 400nA |
Input Noise (nV/rtHz) | 8nV/rtHz |
Vcc-Vee Supply (V) | 3 to 12 |
Iq per Amplifier | 1.5mA |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +85 |
Packages | SC70,SOIC |
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . .See Figure 2
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . . .... ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .. ±4 V
Storage Temperature . . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range . . . . . . . . . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . 300°C
The AD8038 (single) and AD8039 (dual) amplifiers are high speed (350 MHz) voltage feedback amplifiers with an exceptionally low quiescent current of 1.0 mA/amplifier typical (1.5 mA max). The AD8038 single amplifier in the SOIC-8 package has a disable feature. Despite being low power and low cost, the amplifier provides excellent overall performance. Additionally, it offers a high slew rate of 425 V/s and low input offset voltage of 3 mV max.
ADI's proprietary XFCB process allows low noise operation (8 nV/HZ and 600 fA/HZ) at extremely low quiescent currents. Given a wide supply voltage range (3 V to 12 V), wide bandwidth, and small packaging, the AD8038 and AD8039 amplifiers are designed to work in a variety of applications where power and space are at a premium.
The AD8038 and AD8039 amplifiers have a wide input commonmode range of 1 V from either rail and will swing within 1 V of each rail on the output. These amplifiers are optimized for driving capacitive loads up to 15 pF. If driving larger capacitive loads, a small series resistor is needed to avoid excessive peaking or overshoot.
