Features: Low power1.3 mA supply current/amplifierHigh speed125 MHz, 3 dB bandwidth (G = +1)60 V/s slew rate80 ns settling time to 0.1%Rail-to-rail input and outputNo phase reversal, inputs 200 mV beyond railsWide supply range: 2.7 V to 12 VOffset voltage: 6 mV maxLow input bias current+0.7 A to 1...
AD8029: Features: Low power1.3 mA supply current/amplifierHigh speed125 MHz, 3 dB bandwidth (G = +1)60 V/s slew rate80 ns settling time to 0.1%Rail-to-rail input and outputNo phase reversal, inputs 200 mV b...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-3dB Bandwidth | 125MHz |
Slew Rate | 62V/s |
Vos | 1.6mV |
Ib | 0.7A |
Input Noise (nV/rtHz) | 16.5nV/rtHz |
Vcc-Vee Supply (V) | 2.7 to 12 |
Iq per Amplifier | 1.5mA |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +125 |
Packages | SC70,SOIC |
Parameter | Rating |
Supply Voltage | 12.6 V |
Power Dissipation | See Figure 6 |
Common-Mode Input Voltage | ±VS ± 0.5 V |
Differential Input Voltage | ±1.8 V |
Storage Temperature | 65°C to +125°C |
Operating Temperature Range | 40°C to +125°C |
Lead Temperature Range (Soldering 10 sec) | 300°C |
Junction Temperature | 150°C |

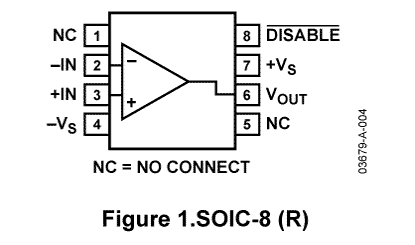

The AD8029 (single), AD8030 (dual), and AD8040 (quad) are rail-to-rail input and output high speed amplifiers with a quiescent current of only 1.3 mA per amplifier. Despite their low power consumption, the amplifiers provide excellent performance with 125 MHz small signal bandwidth and 60 V/s slew rate. ADI's proprietary XFCB process enables high speed and high performance on low power.
This family of amplifiers exhibits true single-supply operation with rail-to-rail input and output performance for supply voltages ranging from 2.7 V to 12 V. The input voltage range extends 200 mV beyond each rail without phase reversal. The dynamic range of the output extends to within 40 mV of each rail.
The AD8029/AD8030/AD8040 provide excellent signal quality with minimal power dissipation. At G = +1, SFDR is 72 dBc at 1 MHz and settling time to 0.1% is only 80 ns. Low distortion and fast settling performance make these amplifiers suitable drivers for single-supply A/D converters.
The versatility of the AD8029/AD8030/AD8040 allows the user to operate the amplifiers on a wide range of supplies while consuming less than 6.5 mW of power. These features extend the operation time in applications ranging from battery-powered systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation.
The AD8029/AD8030 are the only low power, rail-to-rail input and output high speed amplifiers available in SOT23 and SC70 micro packages. The amplifiers are rated over the extended industrial temperature range, 40°C to +125°C.
